Adaptor universal FCA 12+8 Fiat, Alfa, Maserati, Chrysler, Dodge, Jeep - SGM

190 Lei

Nou, Cu factură, Cu garanție

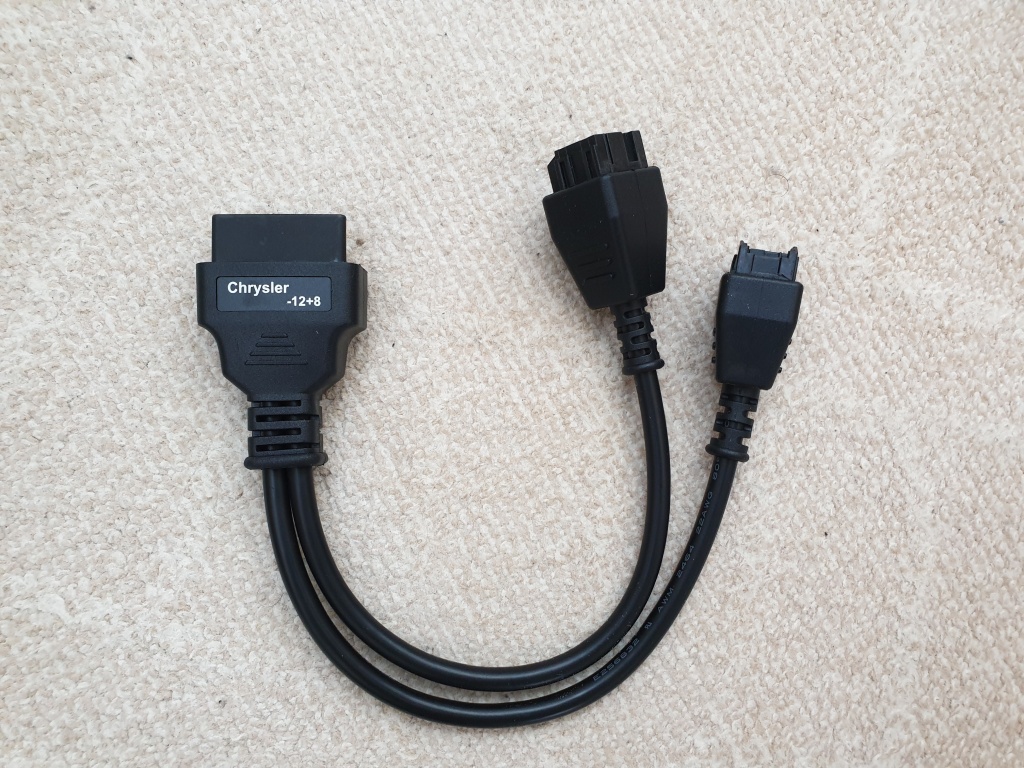

FCA 12+8 Adapter for Chrysler Work on Autel MaxiSys/IM608 /Launch X431 V/ OBDSTAR

FCA 12+8 Adapter is Autel's bypass for Chrysler's Security Gateway Module (SGM) which limits an aftermarket scaun tool to only reading DTCs and viewing data.
With Chrysler 12+8 Adaptor, it allows communication with latest Chrysler, Dodge, Jeep, Fiat & Alfa vehicles till year 2019.
Can be used with Autel Maxisys Series and IM608, OBDSTAR devices like OBDSTAR X300 DP Plus, Launch devices like Launch X431 V etc.

FCA 12+8 Adapter for Chrysler Work on Autel MaxiSys/IM608 /Launch X431 V/ OBDSTAR

FCA 12+8 Adapter is bypass for Chrysler's Security Gateway Module (SGM) which limits an aftermarket scaun tool to only reading DTCs and viewing data.

2018 and newer Chrysler, Dodge, Ram, Jeep, and Fiat now have a secure gateway module or SGM. This SGM will not allow your scaun tool to do bidirectional controls on the vehicle. Autel has provided a cable to bypass the SGM. The new Chrysler 12+8 Diagnostic Cable allows communication with latest model Chrysler, Dodge, Jeep, Fiat & Alfa vehicles.

Suitable for:

The 12+8 Adapter can be used with Autel Maxisys Series Scanners MS906BT+ like MS906BT, MS906S, MS908, MS908S, MS908S PRO, Maxisys Elite and IM608.
OBDSTAR devices like OBDSTAR X300 DP Plus
Launch devices like Launch X431 V, Launch X431 V+ etc.

What is it used for?

1. It's used to diagnose on Chrysler Jeep Renegade Wrangler 300C after 2018 year
2. Most 2018 and newer FCA vehicles include a Security Gateway Module.

Expect to see this message when scanning a Chrysler with the Security Gateway Module:
DEVICE UNABLE TO COMMUNICATE WITH THE CONTROL UNIT
Placement of the SGM varies, but it is often located in the side kick panel, passenger side near the glove box, or behind the radio.

Please Note:
YOU MUST USE THE APPROPRIATE CONVERTER. NO RETURNS WILL BE ACCEPTED FOR DAMAGE CAUSED BY USING THE WRONG POWER TYPE.

Features and Functions:

1. Read/ Clear Codes
2. Perform Active Tests
3. View Generic & Manufacturer Live Data
4. Perform TPMS OBDII Relearn
5. Coding and Adaptation with Maxisys Tablet Tools MS906BT+
6. ADAS calibrations (Requires Maxisys ADAS Software)

Chrysler 12+8 Adapter needed on Vehicles with Secure Gateway Module:

2013+ RAM Promaster
2015+ Fiat 500x
2015+ RAM Promaster City
2016+ Jeep Renegade
2017+ Alfa Romeo Giulia
2017+ Jeep Compass
2017+ Jeep Cherokee
2018+ Jeep Wrangler
2018+ Ram Trucks
2018+ Dodge Durango
2018+ Jeep Wrangler (JL Body only, not JK)
2018+ Dodge Journey
2018+ Jeep Grand Cherokee
2018+ Chrysler Pacifica
2018+ Chrysler 300
2018+ Dodge Charger
2018+ Dodge Challenger
2019+ Most Fiat/ Chrysler/ Jeep/ Ram vehicles
2020+ ALL FCA vehicles

Package List:

1pc x FCA 12+8 Adapter

Compatibil cu:
Alfa Romeo Giulia
Chrysler 300C
Dodge Journey
Jeep Cherokee, Compass, Grand Cherokee, Renegade, Wrangler
Nissan Note
Toyota Avensis, Corolla, Prius, Yaris
Fiat 500X
Lexus IS

Piesă auto compatibilă cu:

Alfa-Romeo Giulia
Chrysler 300C
Chrysler Pacifica
Dodge Challenger
Dodge Charger
Dodge Durango
Dodge Journey
Dodge RAM
Fiat 500X
Jeep Cherokee
Jeep Compass
Jeep Grand Cherokee
Jeep Renegade
Jeep Wrangler
Nissan Note
Toyota Avensis
Toyota Corolla
Toyota Prius
Toyota Yaris
