Xhorse VVDI BIM Tool BIMTool Pro - Corectie KM , Codari si Programari, Retrofit

4400 Lei

Product Description

Xhorse VVDI BIMTool Pro Suport BMW E-sys and Rheingold Diagnostic System. Able to replace the specialized devices. (connect via network cable),Suport directly read ISN data without disassembling the ECU (N13/N20/N55/N63)

Xhorse VVDI BIM Tool Pro Enhanced Edition


 VVDI BIMTool Pro New Features

  • Add ethernet port, Suport 10/100M programming via Ethernet.
  • Suport WIFI 802.1b/g, 150Mbps high-speed connection, and WIFI OTA upgrade
  • Suport DoIP Vehicle/Module Programming
  • Suport BMW ECU programming (NBT/CIC) (connect via network cable)
  • Greatly speed up the F/G Chassis programming (connect via network cable)
  • Suport BMW E-sys and Rheingold Diagnostic System. Able to replace the specialized devices. (connect via network cable)
  • Suport directly read ISN data without disassembling the ECU (N13/N20/N55/N63)

XHORSE VVDI BIMTOOL PRO Update Version of VVDI for BMW Tool

Highlights of VVDI BIMTOOL Pro:


1. Add Ethernet Port
Aside of USB port, which will speed up the programming / coding, usually it will only take several minutes instead of dozens of hours when using the USB cable.

2. Add Wifi Connection (WIFI 802.1b/g, 150 Mbps high-speed connection, and WIFI OTA upgrade)
When upgrading the machine firmware, you can connect the WIFI.

3. Operating System: Compatible with WIN7 8 10 etc, no computer operation system limitation.

4. Language: English, Italian, Spanish, Deutsch, Hungarian, Polish etc.

5. Suport for BMW ECU Programming(NBT/CIC), for BMW E-Sys and Rhelngold Diagnostic System, able to replace the specialized devices, and greatly speed up the F/G Classis Programming.
(Being connected via the network cable)

6. Suport DolP Vehicle/ Module Programming

7. Suport directly read ISN data without disassembling the ECU (N13/N20/N55/N63)


VVDI BIMTOOL Pro Using Notice:

1. Please don't use the Internet Port and USB Port at the same time.
For FEM/BDC Programming using the USB Port connect is ok; Others Programming you can connect the Internet Port.

2. When connect the port with PC, first it will display"Booting", after 20 secs it will display as for "BMW", then it means the connect ok.

Xhorse VVDI BIMTool Pro Functions:

1. E-Series programming, coding, DTCs

1). Suport autodetect car chassis
2). Suport scan all car units
3). Suport calculate all configuration units
4). Suport read/write car configuration(FA)
5). Suport input HW/ZB number to programming
6). Suport calculate default coding from FA
7). Suport edit detail coding information, change car config
8). Suport many languages DTC code

2. F-Series programming, coding, DTCs
1). Suport autodetect car chassis
2). Suport read/write car configuration(FA)
3). Suport calculate programming files from unit, car, whold database
4). Suport calculate default coding from FA
5). Suport edit detail coding information, change car config
6). Suport detail special function list from coding
7). Suport many languages DTC code

3. CAS1/CAS2/CAS3/CAS3+/CAS3++ISTAP OBD key learning
1). Suport read key information, write key inforamtion
2). Suport key learning
3). Suport read/write EEPROM
4). Suport read ECU/gearbox synchronize codes
5). Suport write ECU/gearbox synchronize codes
6). Suport synchronize ECU and CAS
7). Suport synchronize CAS and ELV
8). Suport read ISN via OBDII
9). Suport reset KM via OBDII
10). Suport disable key/enable key

4. CAS4(1L15Y)/CAS4+(5M48H) OBD key learning
1). Suport read CAS encrypt key via OBDII
2). Suport key learning via programmer and via ignition switch
3). Suport disable key/enable key
4). Suport erase key position
5). Suport reset KM via OBDII
6). Suport read ISN via OBDII
7). Suport backup/restore coding
8). Suport update original CAS4 file

5. FEM/BDC OBD key learning
1). Suport read FEM/BDC encrypt key via OBDII
2). Suport key learning via programmer and via ignition switch
3). Suport disable key/enable key
4). Suport erase key position
5). Suport reset KM via OBDII
6). Suport read ISN via OBDII
7). Suport backup/restore coding
8). Suport exchange used FEM/BDC
9). Suport close/open transport mode
10). Suport reset ECU lock
11). Suport switch on ignition without working key

6. CAS EEPROM dump key learning
1). Suport EWS1, EWS2, EWS3, EWS4, CAS1(0K50E), CAS2(2K79X), CAS3(0L01Y), CAS3+(0L15Y), CAS3++ISTAP(0L15Y, 0M23S)
2). Suport prepare dealer key via programmer
3). Suport disable key/enable key
4). Suport read ISN from working key

7. 8HP Gearbox renew
1). Suport clear ISN in 8HP gearbox
2). Suport backup/restore coding
3). Suport reset adaptation information

8. Read synchronize code from E-Series ECU: Suport MEV9N46L, MSV70, MSS60, MS450, N62 etc

9. Read E-Series/F-Series ECU ISN via OBDII

1). Suport MSV80, MSV801, MSD80, MSD81, MSD802, MSD812, MSD851
2). Suport MED17xx/MVD17xx/MEVD17xx/MV1722
3). Suport MED172/MEV17N46/ME17N45
4). Suport MEVD172Y/MEVD172/MEVD1725/B38/X63TU

10. Suport exchange ECU and CAS
1). Suport write ECU ISN via OBDII
2). Suport write ECU VIN via OBDII
3). Suport change ECU ISN and VIN with EEPROM dump
4). Suport chagne CAS1/CAS2/CAS3/CAS4 ISN and VIN with EEPROM dump

11. CAS repair(OBD&EEPROM)
1). Suport repair ISTAP CAS
2). Suport repair CAS EEPROM(Service mode EEPROM), you can start engine after repair the file(CAS1,CAS2,CAS3,CAS3+,CAS3++ISTAP)

12. CAS3+/CAS4+ lost all dump file suport restore ISN and VIN
1). Suport CAS3+(1L15Y) encrypt version
2). Suport CAS3++(ISTAP) version
3). Suport CAS4+(5M48H) version

13. File KM calibration
1). Suport EWS1, EWS2, EWS3, EWS4
2). Suport CAS1(0K50E), CAS2(2K79X), CAS3(0L01Y), CAS3+(0L15Y, 0M23S)
3). Suport CAS4(1L15Y), CAS4(5M48H, 1N35H)
4). Suport E-Series dashboard EEPROM(M35080)
5). Suport F-Series dashboard EEPROM(35160, 35128)

14. Unlock HITAG2 key: Suport lock hitag2 key made for BMW TOOL via programmer

15. EWS3/EWS4 can read EEPROM, write EEPROM via CAS PLUG


For more details, please read the User Manual.


For BMW BIMTool Pro E /F Chassis Programming & Coding:


●Program / Code for BMW Exx
1. Connect Car
Can auto detect vehicle model, read module information, suport chassis: E36, E38, E39, E46, E52, E53, E60, E63, E64, E65, E66, E67, E70, E71, E72, E83, E85, E86, E89, E90, E91, E92, E93, K1X, K24, KH2, R50, R52, R53, R55, R56, R57,
RR1,.etc chassis

2. Read and write Vehicle configuration(FA/FP)
Can read the configuration information inside of vehicle module, and to change the vehicle configuration information for replacing second-hand module.


3. Registered unit information from gateway / Calculate adaptive control unit
Read registered unit information from gateway
Calculate adaptive control unit-calculate all control units of the current vehicle based on configuration information

4. Module information/DTCs
Read the specific information of selected module, then read and clear DTCs .,etc

5. Unit coding
Read the coding information of selected unit, save coding, load coding, write coding and  calculate the default coding based on the vehicle configuration information etc.

6. Module programming
According to the hardware version number and ZB version number in the current module, search for the supported programming files and perform programming functions

●Program / Code Fxx / Gxx
1. Connect to car
Auto detect vehicle model, and read the information inside of module.

2. Read & write vehicle configuration(FA/FP)
Can read the vehicle configuration information inside of module, and change the vehicle configuration information for replacing second hand module.

3. Read / Clear DTCs
Can read and clear DTCs for vehicle maintenance.

4. Vehicle coding
Can read out the coding information inside of module, the user can change the corresponding value as required to realize some configuration functions.

Features:
1). Read the coding: read the code information in the module
2). Save coding file: Save the coding information to a file
3). Load coding file: Load the coding file that is saved.
4). Calculate the default coding: If the default coding of module is lost, it will be calculated according to the vehicle configuration information
5). Write coding: write the coding to the module
6). Hide function: We have re-organized some of the frequently-used configuration changes option, see the figure below:

5. Vehicle programming
From vehicle configuration information to calculate the related module flash information, and write to module.

For BMW BIMTool Pro Gearbox (Clear and Reset):

Function description:
1. Read gearbox status: Suport read 8HP gearbox status, module is brand new or not,.etc
2. Backup Coding: Backup gearbox coding
3. Restore Coding: Restore gearbox coding
4. Clear Gearboxs ISN: Suport clear 2nd-hand used gearbox all inside information, let this module become as brand new
5. Reset adaption information: Reset gearbox inside adaption information, let it back to original status

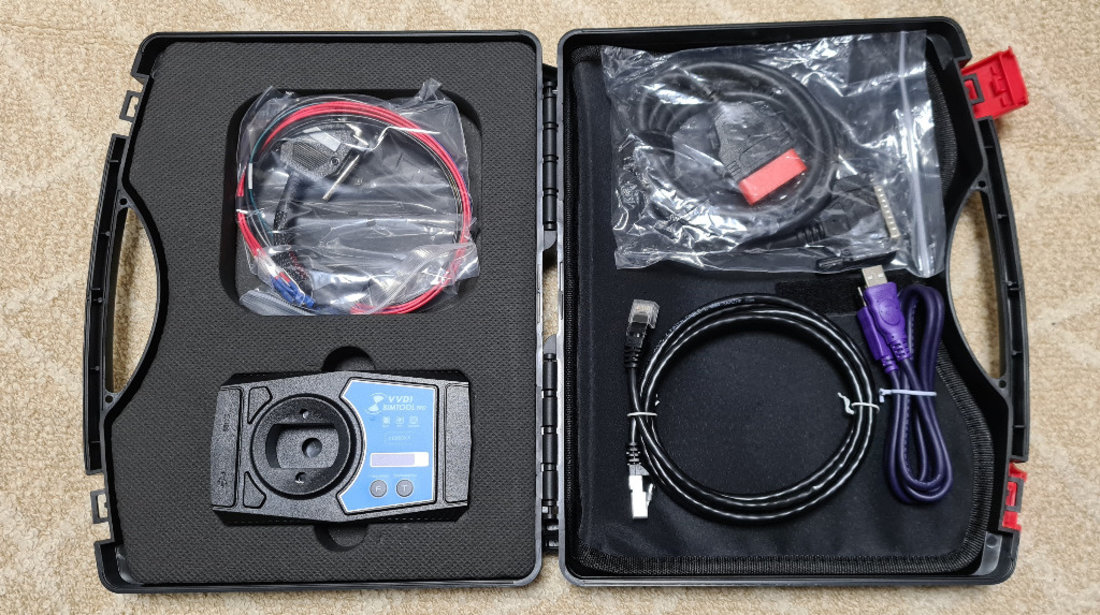

Package List:

1pc x VVDI BIMTool Pro Main Unit
1pc x OBD Cable
1pc x Ethernet Cable
1pc x USB Cable
1pc x ECU Reflash Cable

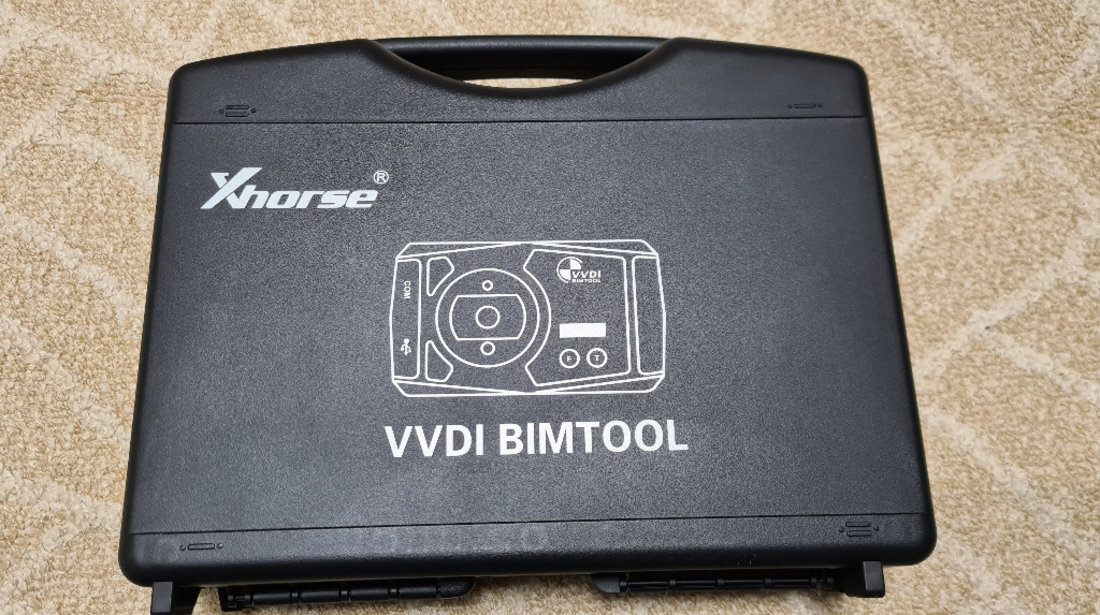

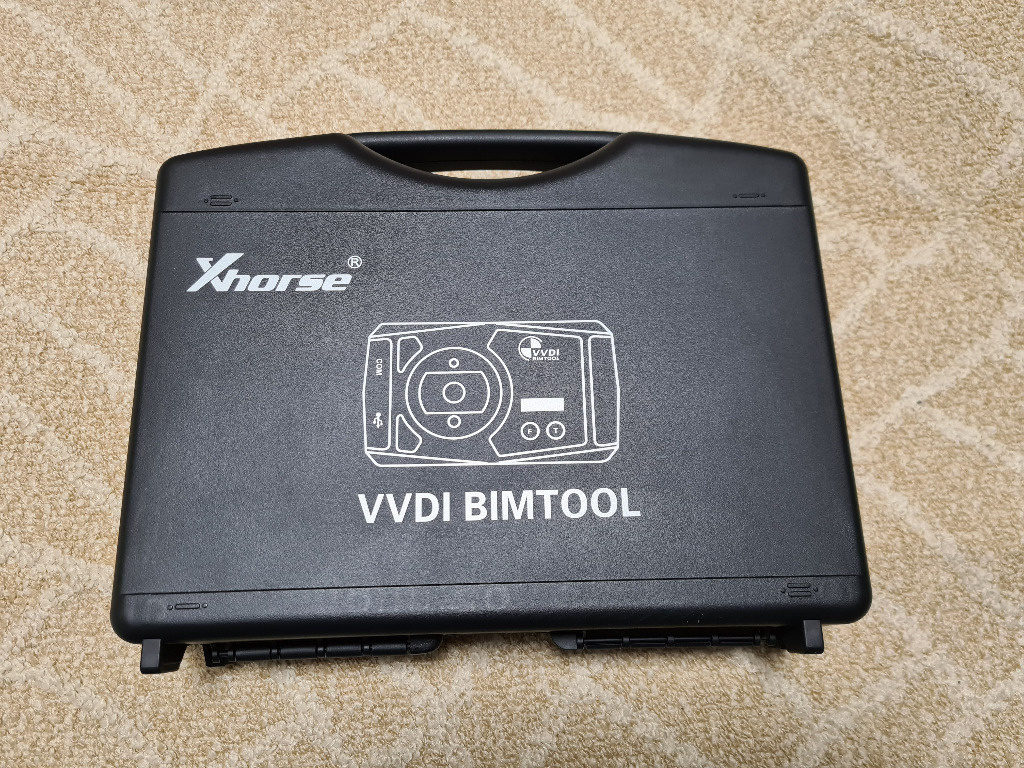

1pc x Plastic Box

Compatibil cu:
Audi Q7
Ford Edge
Renault Symbol
BMW E36, E46, E90, E93, E92, E91, E39, E60, E63, E64, E65, X3 E83, X5 E53, X5 E70, X6 E71, Z4 E85, Z4 E89, Z4 E86, E66
Volkswagen Up
Lexus IS

Stare produs
Nou / Cu factură / Cu garanție
Piesă auto compatibilă cu:
Audi Q7
BMW X3 E83
BMW X5 E53
BMW X5 E70
BMW X6 E71
BMW Z4 E85
BMW Z4 E86
BMW Z4 E89
Ford Edge
Ford Model A
Lexus IS-F
Renault Symbol
VW Up
