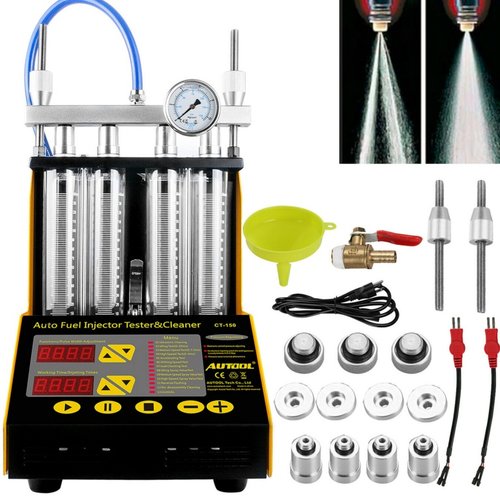

Autool CT150 Aparat testare + curatare ultrasonic + reparare injectoare Common Rail benzina
1950
Lei
Aparat testare + curatare ultrasonic + reparare injectoare Common Rail benzina
This latest generation ultrasonic injector cleaner . Can cleaning and testing both petrol car and motorcycle injector with this machine.(motorcycle suport HONDA YAMAHA SUZUKI SANYANG only)
We can even clean fuel system, throttle valve without disassembly via CT150 (need additional accessories)
It is good at remove carbon from your fuel system, testing leaking ,Uniformity,inbreathe about injectors
Please Note:
This latest generation ultrasonic injector cleaner . Can cleaning and testing both petrol car and motorcycle injector with this machine.(motorcycle suport HONDA YAMAHA SUZUKI SANYANG only)
We can even clean fuel system, throttle valve without disassembly via CT150 (need additional accessories)
It is good at remove carbon from your fuel system, testing leaking ,Uniformity,inbreathe about injectors
Please Note:
1 This one was for 4 cylinder car (It will fit for 2 cylinder after blocking two test tube )
2 The machine work on petrol injector, not for diesel injector
3 Motorcycle injector testing for HONDA YAMAHA SUZUKI SANYANG only(adapter need extra fee ),
customization special adapter for your motorcycle, please contact us.
4.Convert cable come with machine, please try to use the convert cable if pulse cable can not match your injector
LESS THAN 2% OF INJECTORS FAIL DUE TO MECHANICAL FAILURE.
THEY JUST GET CLOGGED WITH DIRT THAT COMES THROUGH THE FUEL SYSTEM.
HOW ABOUT CLEAN INJECTORS COMPLETLY？ LET IT REBORN！
Main Function:
A Cleanning petrol injector with ultrasonic
B Cleanning spark plug：Put spark plug into cleaning tank ,input clean fluid and begin clean
C Testing injector injection in different situation, check leaking and blocking
D Cleanning injector without disassembly (need extra accessory and extra fee,choose by yourself)
E Cleanning throttle valve without disassembly. (need extra accessory and extra fee,
choose by yourself)
F Standard config for top feed injector only (side feed injector adapter need extra fee,
choose by yourself
G Cleanning and test motorcycle injector,testing function for HONDA YAMAHA
SUZUKI SANYANG injectors only, (need extra accessory and extra fee,
choose by yourself)
choose by yourself)
The CT150 cleaning machine how to work:
1 Clean injector's outside with gasoline or cleaning liquid before open machine
2 Putting injectors in ultrasonic bathtub after the outside of injector are free of dirt.
3 Turn on ultrasonic system，pulsed allowing the ultrasonic energy to dislodge
any particles even build-up inside the injectors.
4 Fixed injectors on main machine
5 Testing injectors for resistance, shorts, and current draw
6 Performing leak test, spray pattern, and flow rate testing on flow bench.
7 The injectors are now returned to the flow bench for retesting of all functions.
About the cleaning liquid and testing liquid:
You need to use the cleaning liquid which is special for injector cleaning ( like Otc Robinair Bosch 7000A-1 Pro Inject R-Clean Fuel Injector Cleaning Fluid )
Please visit this link:
000A-1-Pro-Inject-R-Clean-Fuel-Injector-Cleaning-Fluid/382489025527?hash=item590e1f5bf7:g:F4UAAOSwpoJbICm0
This one is ok.
About the testing liquid,you can use the testing liquid which is special for injector testing or use alcohol for a test.

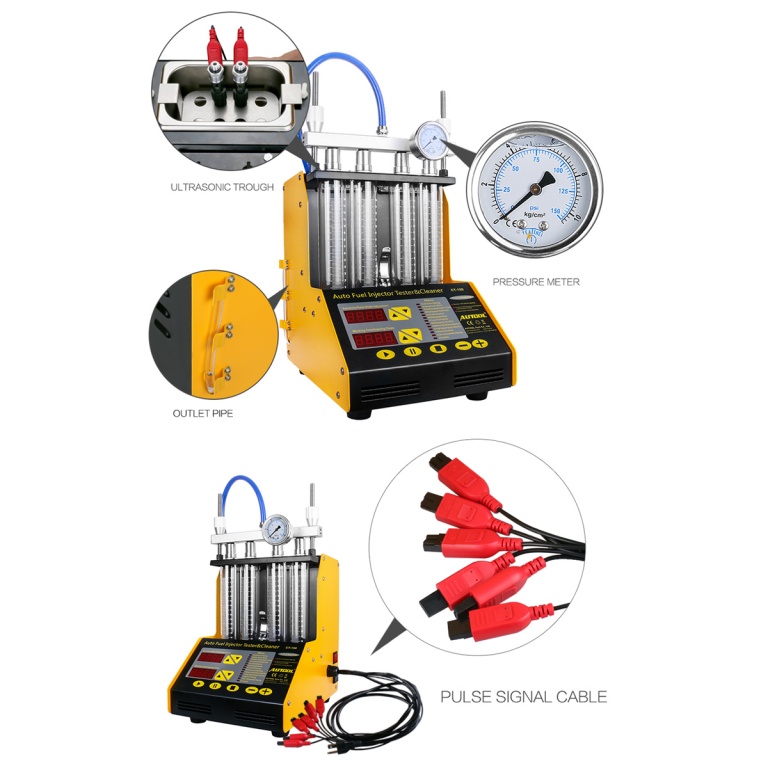

FEATURES:
1. LED display;
2. Ultrasonic cleaning trough built-in;
3. Tool trolley make it more conveniently to operate;
4. Equip with high quality SIEMENS pump, make it endurable;
5. Discharging fluid more quickly, add 2 value in front of machine.
Working Condition:
Power supply: AC220V/AC110V±10%
Frequency: 50HZ±0.5
Humidity: ＜85%
Environment Temperature: 0℃～＋40℃
Magnetic Field: ＜400Ａ/m
Spark and fire is prohibited.
Specifications:
Fuel Tank Capacity: 2000 ml
Capacity of Measuring Cylinder: 125 ml
Speed Range: 0~7500 rpm
Injecting Times: 0~9900 Step: 100ms
PWM Pulse: 0~20.0 ms Step: 0.1 ms
System Pressure: 0~0.6Mpa (adjustable)
Time: 0~20 minute (adjustable)
Power of Ultrasonic Cleaning: 70W
Frequency of Ultrasonic Cleaning: 28 KHZ±0.5 KHZ
Weight:10KG
Suport Model:
Audi,Australia Ford,Benz,BMW,Brilliance,Chevrolet,Chevy,Chrysler,Citroen,
Dacia,Dadi,Daewoo,Daihatsu,Demo,Fiat,Ford,GM,Holden,
Honda,Hyundai,Isuzu,Jaguar,Kia,Lancia,Land Rover,Mahindra,Maruti,Mazda,Mitsubishi,Nissan,Opel,
Peugeot,Porsche,Renault,Romeo,Rover,Saab,Seat,Skoda,
Smart,Subaru,Suzuki,Tata,Toyota,Volvo,VW,Yamaha
