Tester baterii auto Vident iBT100 12V Flooded, AGM,GEL 100-1100CCA Automotive
It provides a quick, easy and affordable solution for technicians to view battery charging status, check battery health and detect faults.
Vident iBT100 12V Battery Analyzer for Flooded, AGM,GEL 100-1100CCA Automotive Tester Diagnostic Tool
Highlights:
1. Multiple vehicle applications – passenger cars and light duty trucks
2. Tests batteries rated from 100 to 1100CCA
3. Tests multiple battery types - regular flooded, AGM flat plate, AGM spiral and GEL
4. Tests multiple rating systems - CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE
5. Tests the batteries on the car directly - no need to remove the battery. Detects bad cells
6. Quick and accurate test result display in just 3 seconds
7. Does not emit light, heat or spark, or discharge battery - keeps operation safe for all levels of users , automatic temperature compensation
8. Extremely easy to use with large backlight LCD display and menu-driven operation
9.Mulit-Language:English, French, German, Italian, Polish, Portuguese, Russian, Spanish, Dutch,Turkish.
| Multiple vehicle applications – passenger cars and light duty trucks | |
| Tests batteries rated from 100 to 1100CCA | |
| Tests multiple battery types - regular flooded, AGM flat plate, AGM spiral and GEL | |
| Tests multiple rating systems - CCA, CA, MCA, JIS, DIN, IEC, EN, SAE | |
| Tests the batteries on the car directly - no need to remove the battery | |
| Detects bad cells | |
| Quick and accurate test result display in just 3 seconds | |
| Does not emit light, heat or spark, or discharge battery - keeps operation safe for all levels of users | |
| Automatic temperature compensation | |
| Extremely easy to use with large backlight LCD display and menu-driven operation | |
| Multilingual menu and test results – English, French, German,Spanish, Italian,Dutch, Polish, Swedish, Portuguese, Russian |
Global Rating Systems
| No. | Standard | Description | iBT100 Testing Range |
| 1 | CCA | Cold Cranking Amps, as specified by SAE. The most common rating for cranking batteries at 0°F (-18°C) | 100-1100 |
| 2 | CA | Cranking Amps standard. The effective starting current value at 0°C (32°F). | 100-1100 |
| 3 | MCA | Marine Cranking Amps standard. The effective starting current value at 0°C (32°F). | 100-1100 |
| 4 | JIS | Japanese Industry Standard, shown on a battery as a combination of numbers and letters | 26A17-245H52 |
| 5 | DIN | Deutsche Industrie-Norm | 100-1100 |
| 6 | IEC | International Electrotechnical Commission | 100-1100 |
| 7 | EN | Europa-Norm | 100-1100 |
| 8 | SAE | Society of Automotive Engineers | 100-1100 |
Specification
| Item | Range | Accuracy |
| Voltage measuring | 12V | 0.50% |
| Battery type | Flooded, AGM, GEL | N/A |
| Battery rating | 100 - 1100CCA | ±(3%+10)CCA |
| Standard suport | CCA, CA, MCA, JIS, DIN, IEC, EN, SAE | N/A |
| Operation Temperature | 0 to 60°C (-4 to 140°F) | N/A |
| Storage Temperature | 0 to 70°C (-4 to 158°F) | N/A |
| Dimensions: 125mm(4.0”)*80mm(2.96’’)*24mm(0.78”) | ||
| Weight: 240g | ||
| QTY/CTN: 50SETS | ||
| Weight/CTN:19.2KG | ||
| CTN MEAS: 35.5*34.5*53.3cm |
Package includes:

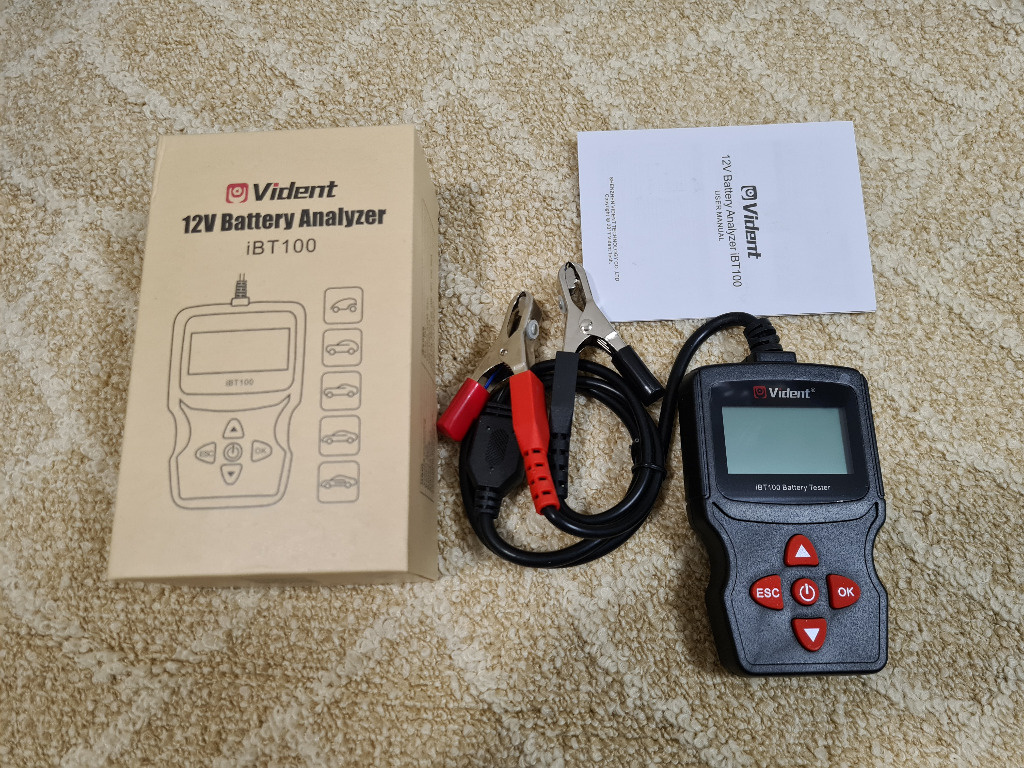

1PC x iBT100 Battery Analyzer
1PC x User’s Manual
Compatibil cu:
Chevrolet Spark
Lancia Kappa
Land Rover Range Rover
Nissan Almera, Primera
Renault Espace, Laguna
Volkswagen Sharan
Lexus IS
Lancia Kappa
Land-Rover Range Rover
Lexus IS-F
Nissan Almera
Nissan Primera
Renault Espace
Renault Laguna
VW Sharan
