Programator universal RT809F + 11 Adapters + SOP8 IC Clip 1.8V SOP8 VGA LCD ISP

00% Original RT809F Programmer + 11 Adapters+SOP8 IC Clip 1.8V SOP8 Adapter VGA LCD ISP Programmer EDED Cable Free shipping

Introduction and Features:

1. supports computer motherboards, laptop, LCD, routers, appliances commonly used 8 feet, 16 feet of the BIOS chip to read and write;
2. Supported DDR1/DDR2/DDR3 SPD memory chip reader for demolition, in particular suport for 34C02 and other special models, adapter seat separately;
3. supporting notebook 8 feet, 14 feet password chip and battery chip (especially 24RF08/ 6480AR/ BR9080/ 9016 other special models);
4. supports 24 full range IIC bus EEPROM memory, which can automatically identify 24C01-24C16 chip model, automatic identification 24 Series seventh foot write protection level, the U.S. Department of the Department of Taiwan and South Korea 24 chip adaptive programming;
5. supporting a full range of SPI bus 25,26 FLASH memory, supports automatic identification chip model, capacity up to 256Mbit;
6. supporting 93 full range MicroWire bus memory, including Japanese manufacturers of special type;
7. exclusive suport RTD2120 chip dual-BANK online read and write functions! BANK0 contains the firmware resides and where the brand's menu BANK1 district, just six seconds to read dual BANK; suport RTD2122 chip three BANK online read and write capabilities.
8. supports LCD monitors and LCD TVs DDC-EDID data read and write online, easy to solve EDID data-related issues;
9. suport laptop screen EDID data read and write online, zero-cost solution DELL, SONY and other notebook pick screen issue, screen wire separately;
10.support Leroy, Ding Branch, Rainbow Star, Triumph, Kang Yue, Wang Jie and other generic driver board, through the VGA port for demolition components can be carried out on the driver board MCU writing brush; burning software for the Chinese version of the WINDOWS interface, make debugging, the programming process at a glance; burning software to increase the chip repair function, damage to the board as long as the brush program successful repair, you can normally use, eliminating rework troubles;
11. supports LCD monitors, TVs original motherboard read online or offline reader firmware, suport TPV, Proview, Samsung, LG, ACER, LENOVO, HP, IBM, BENQ, HKC, Hisense, Skyworth, Konka, Changhong, TCL , Haier, Hisense and other major brands, suport NOVATEK, MTK, MST, GENESIS, TSUM, SE, FT, REALTEK, WINBOND, WELTEND, MYSON,, China and Asia micro, PIXELWORKS other chipset solution, you can use the official software or ISP independent software, taking into account the functional integrity and user's ease of use;
12. supports Samsung, Philips, AOC, BENQ, NESO use NT68F63/NT68F632/NT68F633 series MCU and WT61P4 models, can free disassemble literacy program, a common problem with Samsung LCD throw program failures, free disassemble the brush will fix ! ! ! In particular an increase online source read MCU functions within the MCU can be a good source to read out and saved, the software for the independent development of the Chinese version, the interface is simple and easy operation; suport for the latest SE1059 Series Main chip reader , easy to solve Samsung SA Series black common problem;
13. supports WINBOND series MCU online writers, such as W78E65P-40, can be substituted AOC, Viewsonic, Proview original driver board M6759, SM5964, SM89516, P89C51RD, TP2804 and other vulnerable types of MCU;
14. suport MTK series of LCD and DVD burning program online, such as: MT1389 MT1379 MT8223 8226, etc.;
15. suport SUNPLUS Sunplus Series DVD online programming. For example 8202D 8202S 8202L 8281 8200, etc.;
16. in nine series satellite receiver suport online upgrade of cracks and bricks machine repair; including Guoxin, Haier, China and Asia, NEC and other movement programs online literacy and demolition chip reader upgrade function;
17. supports USB power supply, communication automatic detection, the programmer self-test mode,
the original online programming mode pin ISP disconnection detection, target board power detection function, when the pin is read offline contact detection, and other special features can identify and prompt burn during various types of failures, read and write errors effectively solve the problem;
18. the programmer using FPGA internal control, PC software upgrades can be completed programming the function itself to upgrade, compatible with more models; using USB interface, power supply and communications, eliminating the need for bulky power adapter, easier to use; programmer lock tight seat interfaces, has anti-static and port IO protection measures to ensure the reliability of the programmer; locking seat can be easily removed for easy user replacement.

1. Read and write 8 pin and 16 pins chips those commonly used on computer motherboard, laptop, LCD, routers and home appliances.
2. Read and write memory SPD DDR1/DDR2/DDR3 Free demolition chip, especially suport 34C02 and other special part numbers.
3. Suport laptop 8 pin and 14 pin password chip and battery chip (especially 24RF08/6480AR/BR9080/9016 special part numbers
4. Suport all series of 24,IIC EEPROM Memory.Besides, it can automatically identify chip model from 24C01 to 24C16,Automatic identify write protection level of the 24 series' 7th pin.
5. Suport all series of 25 and 26 SPI FLASH Memory,suport identify the chips part number automaticly,the capacity is up to 256Mbit.

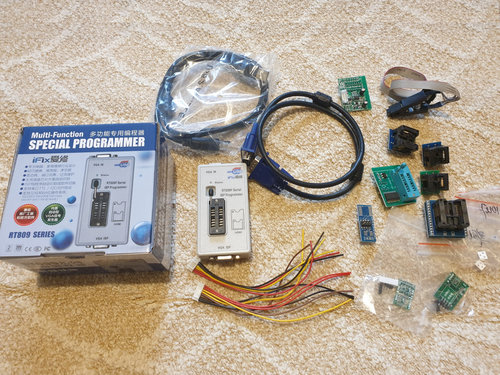

Packing List:
1*USB Cable 1*Jumper Cables
1*RT809F Programmer
1*USB Cable
1*VAG Cable

1*RT-SOP-A ISP Cable

1*SOP4-28PIN Board
1*SOP8 Simple socket

1*SOP8 -DIP8 adaptor(~150 mil)

1*SOIC8-DIP8 ZIF adapter (200~209mil
 1*SOP16-DIP8 (300mil)
1*SOP16/SOP8-DIP8 simple adapter
1*ICSP Adapter
1*KB9012 simple PCB board
1*IC clip
1*1.8V Conversion Block 25 series low voltage chip adapter Apple LCD Tablet PC BIOS
