ELM327 BT FTDI chip Modificat Forscan, Elmconfig, Focccus. HS CAN / MS CAN

      Compatibilitate auto:

• Ford: generatiile aparute dupa 2004. Interfata poate fi utilizata cu FORScan, ElmConfig, FOCCCus, FF2
• Mazda: generatiile aparute dupa 2004. Interfata poate fi utilizata cu FORScan

Comutatorul MS Can - HS Can permite diagnoza pe majoritatea modulelor electronice de pe masinile Ford - Mazda, generatiile aparute dupa 2004.

Astfel cu ajutorul programelor FORScan, ElmConfig, FOCCCus, FF2 veti putea face diagnoza completa pe masinile compatibile.

In acelasi timp interfata poate fi utilizata si cu programele standard compatibile ELM327 de pe Windows:  OBD Auto Doctor, Scanmaster ELM, etc. si se poate utiliza pe orice masina compatibila OBD2(benzinare fabricate dupa 2000 si diesel-uri fabricate dupa 2004)

Protocoale OBD2 suportate:

• SAE J1850-PWM
• SAE J1850-VPW
• ISO 9141-2
• ISO 15765-4 (CAN 11bit 500kb)
• ISO 15765-4 (CAN 29bit 500kb)
• ISO 15765-4 (CAN 11bit 250kb)
• ISO 15765-4 (CAN 29bit 250kb)
• KWP2000 FAST (ISO 14230-4)
• KWP2000 SLOW (ISO 14230-4)
• Nou! Comutatorul montat pe interfata permite accesarea protocoalelor MS Can si HS Can prezente pe modelele Ford - Mazda, generatiile dupa 2004

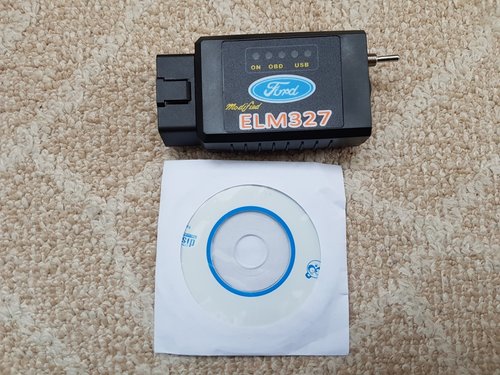

FTDI chip ELM327 USB switch for Ford diagnostic cable





Only  Suport Windows XP and WIN7 32biti !!



Suport language:English,Germany,Greek,Spanish,French,Serbian.



Technical Details:



1Latest ELM327 version for greater Ford compatibility

2Manufactured modification to include a switch to connect to different CAN buses

3Designed for FORScan software

4Compatible with software venders; FORScan, Elmconfig, FF2 and FoCCCus, plus more

4MS CAN bus and HS CAN bus suport

5Drivers and instructions included



Product Introduction:



One ELM327 OBDII OBD2 USB with switch. Designed for communicating with Ford, Mazda, Lincoln and Mercury vehicles. With this cable and the one of the supported software vendors you can detected modules which are not visible for regular

OBD2 scanners. This includes showing you trouble codes, PIDs, running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327.



Basic Features:



Reset fault /trouble codes / parameter ids (PIDs)

Change car configuration data

Run tests

Services procedures

Program certain models



Pin Configurations:



Switch position one: HS CAN - Occupies pins 6 and 14

Switch position two: MS CAN - Occupies pins 3 and 11



Supported Software:



FORScan

Elmconfig

FoCCCus

FF2

Plus more



Modified EML:



Please note that many Ford and Mazda models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327, because MS CAN

is a manufacturer-specific solution and located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus.

ELM327 supports HS CAN from the stock, because for Ford HS CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.



Supported Vehicles:



All for Ford, for Mazda, for Lincoln, for Mercury vehicles that can be addressed using an ELM via an OBDII connector.



Supported Protocols:



for FORD HS CAN

for FORD MS CAN

Packing List:



1 * ELM327 OBD2 bluetooth diagnostic interface
