Interfata Diagnoza FORScan ELS27 pentru Ford/Mazda/Lincoln/Mercury

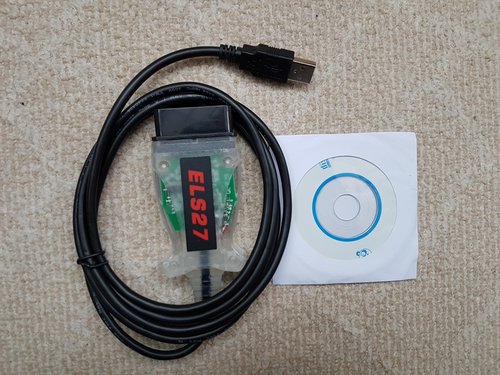

ELS27 FORScan Scanner for Ford/Mazda/Lincoln and Mercury Vehicles



What is FORScan?

For example, FORScan can detect modules which are not visible for regular OBD2 scanners, can show you trouble codes which are never displayed by OBD2 scanners, can show you PIDs which are not supported by any OBD2 scanner, run specific tests and service procedures. In other words, FORScan can do things that regular OBD2 scanners can not do.



Supported platforms:

 Windows 2000/XP/Vista/7/8/8.1

 Do not suport wifi or bluetooth



Main features

 Detect vehicle on-bord network configuration

 Read and reset Diagnostic Trouble Codes from all modules (see list of supported modules)

 Reading of modules' sensors' data

 Run test diagnostic procedures (not supported in FORScan Lite yet)

 Run service procedures (not supported in FORScan Lite yet)



Supported vehicles:

All Ford, Mazda, Lincoln, Mercury vehicles that can be addressed by supported adapters. It is 99% of models after 2000 and around 92% of models after 1996 (the year when OBD2 became a standart in USA).



Supported adapters :

 ELM327

 J2534 Pass-Thru

 CANtieCAR (in "FORScan" mode)

 OBDLink SX/MX (STN11xx)

 ELS27 (STN1170)

 Supported protocols and bus:

 FORD HS CAN

 FORD MS CAN (only for J2534-2, CANtieCAR, OBDLink MX, ELS27 or modified ELM327)

 FORD SCP

 FORD 9141



Supported modules:

 Almost all of modules availabe through supported protocols.

 Powertrain Control Module (PCM)

 Anti-Lock Brake / Traction Control Module (ABS)

 Hybrid Electronic Cluster (HEC)

 Left High Intensity Discharge Lamp (LHID)

 Right High Intensity Discharge Lamp (RHID)

 Vehicle Dynamics Module (VDM)

 4X4 Control Module (4X4M)

 Aer Conditioning Control Module (ACCM)

 Audio Control Module (ACM)

 Audio Control Unit (ACU)

 Alternative Fuel Control Module (AFCM)

 Adaptive Front Lighting System / Auto Leveling Module (AFS/ALM)

 Adaptive Front Lighting System (AFS)

 Auxiliary Heater Control Module (AHCM)

 Audio Interface Module (AIM)

 Auto Leveling Module (ALM)

 Amplifier Module (AM)

 Accessory Protocol Interface Module (APIM)

 Automatic Ride Control (ARC)

 A-STOP System (No Idling System) (A-STOP)

 All Terrain Control Module (ATCM)

 All Wheel Drive Module (AWD)

 Battery Charger Control Module (BCCM)

 Battery Control Module (BCM)

 Body Control Module (BCMii)

 Body Control Module / Generic Electronic Module (BCM/GEM)

 Body Control Module B (BCMB)

 Battery Energy Control Module (BECM)

 Body Electronic Module (BEM)

 Bluetooth Phone Module (BPM)

 Security module (CSM)

 Blind Spot Monitoring (Left) (BSML)

 Blind Spot Monitoring (Right) (BSMR)

 Remote Climate Control (RCC)

 Cruise-Control Module (CCM)

 Circuit Deactivation Ignition Module (CDIM)

 Compact Disc Player (CDP)

 Instrument cluster (Instalatie)

 Column Lock Module (CLM)

 Camera Module Rear (CMR)

 Connectivity Master Unit (CMU)

 Cellular Phone Module (CPM)

 Central Timer Module (CTM)

 Convergence Telematics Module (CTMii)

 Digital Audio Broadcast Module (DABM)

 Digital Audio Control Module C (DACMC)

 DC to DC Converter Control Module (DCDC)

 Driver/Dual Climate-Control Seat Module (DCSM)

 Reductant Control Module (DCU)

 Driver Door Control Unit (DFDM)

 Drivers Door Module (DDM)

 Deployable Hood System (DHS)

 Driver's Seat Module (DSM)

 (Audio) Digital Signal Processing Module (DSP)

 Electronic Automatic Temperature Control (EATC)

 Rader Brake Suport (EBS)

 Electronic Crash Senzor (ECS)

 Electric Parking Brake (EPB)

 Electronic-Controlled Power Steering (EPS)

 Anti-Lock Brake / Traction Control Module (ESOF)

 Front Body Control Module (F_BCM)

 Fuel Additive Control Module (FACM)

 Front Control/Display Interface Module (FCDIM)

 Front Controls Interface Module (FCIM)

 Front Display Interface Module (FDIM)

 Front Distance Sensing Module (FDSM)

 Transmission Control Module (TCM)

 Fuel Fired Coolant Heating Module (FFH)

 Passive Anti-Theft System (PATS)

 Front Electronic Module (FEM)

 Fuel Injection Control Module (FICM)

 Fuel Indication Module (FIM)

 Fuel Injection Pump (FIP)

 Front Lighting Control Module (FLM)

 Fuel Operated Heater (FOH)

 Forward Sensing Camera (FSC)

 Fire Suppression System Module (FSSM)

 Folding Top Control Module (FTCM)

 Generic Display Module (GDM)

 Generic Electronic Module / Smart Junction Box (GEM/SJB)

 Generic Electronic Module (GEM)

 Generic Function Module (GFM)

 Global Positioning System Module (GPSM)

 Gear Shift Module (GSM)

 Gateway Module A (GWM)

 Headlamp Control Module (HCM)

 Headlamp Control Module 2(B) (HCM2)

 Headlamp Leveling Module (HD_LVL)

 Instrument Cluster (IC)

 HVAC Integrated Module (HIM)

 Heated Steering Wheel Module (HSWM)

 Head Up Display (HUD)

 Heated Steering Wheel Module (HV)

 Heating Ventilation Aer Conditioning (HVAC)

 Integrated Airbag Module (IABM)

 Smart City Brake Suport (ICA)

 Intelligent Cruise Control Module (ICCM)

 Information Center Module (ICM)

 Injector Control Unit (ICU)

 Interior Lighting Control Module (ILCM)

 Instrument Panel Control Module (IPC)

 Intelligent Power Distribution Module (IPDM)

 Image Processing Module A (IPMA)

 Image Processing Module B (IPMB)

 Lighting Control Module (LCM)

 Left Power Sliding Door Module (LPSDM)

 Liftgate / Trunk Module (LTM)

 Message Center (MC)

 Multifunction Steering Wheel (MFSW)

 Multi-Information Display (MID)

 Motor Pretensioner Module (MPM)

 Navigation Controller (NAV)

 Aer Suspension (4WAS)

 Aer Conditioning (AC)

 Cruise Control (CCM)

 Steering Column Locking Module (SCLM)

 4 Wheel Steering (WS4)

 Next Generation Speed Control Module (NGSC)

 Battery Control Module (OBD_BCM)

 Fuel Injection Control Module (OBD_FICM)

 Occupant Classification System Module (OCS)

 Overhead Trip Computer (OTC)

 Parking Aid Module (PAM)

 Park Brake Control Module (PBM)

 Passenger Climate-Control Seat Module (PCSM)

 Passenger Climate-Control Seat Module 2 (rear) (PCSM2)

 Passengers Door Control Unit (PDM)

 Power Running Bord (PRB)

 Power Steering Control Module (PSCM)

 Passenger Front Seat Module (PSM)

 Rear Body Control Module (R_BCM)

 Rear Audio Control Module (RACM)

 Remote Anti-Theft / Personality Module (RAP)

 Rear Aer Suspension Module (RASM)

 Rear Aer Temperature Control (RATC)

 Restraint Control Module (RCM)

 Audio Rear Control Unit (RCU)

 Rear Electronic Module (REM)

 Remote Emergency Satellite Cellular Unit Module (RESCU)

 Rear Seat Entertainment Module (RETM)

 Remote Function Actuator (RFA)

 Rear Gate/Trunk Module (RGTM)

 Retractable Hard Top (RHT)

 Rear Heating Ventilation Aer Conditioning (RHVAC)

 Remote Keyless Entry (RKE)

 Rear Lighting Control Module A (RLCMA)

 Rear Left Door Control Unit (DRDM)

 Right Power Sliding Door Module (RPSDM)

 Rear Right Door Control Unit (PRDM)

 Tire Pressure Monitor (RTM)

 Rear Vehicle Monitoring (RVM)

 Steering Angle Senzor Module (SASM)

 Smart Brake Suport/Mazda Radar Cruise Control (SBS/MRCC)

 Steering Column Control Module (SCCM)

 Steering Column/Instrument Panel/Lighting (SCIL)

 Seat Control Module E (SCME)

 Seat Control Module G (SCMG)

 Seat Control Module H (SCMH)

 Selective Catalytic Reduction (SCR)

 Satellite Digital Audio Receiver System (SDARS)

 Steering Effort Control Module (SECM)

 Secondary OBD Control Module A (SOBDM)

 Secondary OBD Control Module C (SOBDMC)

 Side Obstacle Detection Control Module - Left (SODL)

 Side Obstacle Detection Control Module - Right (SODR)

 Speech Recognition Module (SRM)

 Supplemental Restraint System (SRS)

 Smart Start Unit (SSU)

 Trailer Brake Control Module (TBC)

 Energy Management Module (EMM)

 Tracking and Blocking Module (TBM)

 Transfer Case Control Module (TCCM)

 Telematic Control Unit Module (TCU)

 Tire Pressure Monitor (TPM)

 Transmission Range Control Module (TRCM)

 Trailer Module (TRM)

 Variable Assist Power Steering (VAPS)

 Vehicle Emergency Messaging System (VEMS)

 Virtual Image Cluster (VIC)

 Vehicle Security Module (VSM)



Package including:

1pc x FORScan
