KW902 WIFI ELM327 Auto OBD2 Code Reader Scanner MINI ELM327 KW902 WIFI Diagnostic Scan Tool Work for IOS/Android/iPhone
KW902 WIFI Scanner Description:
The device is a small adapter that plugged into the vehicle OBDII connector via WiFi, it is suitable for smart phones and tablets with Android system or iOS system. With associated diagnostic procedures, you need to download a driver software ( TORQUE or DashCommand ). With this product, you will be able to perform a complete computer diagnostic car and even to correct minor faults without resorting to service stations.
Main features:
- Display real time performance of your car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position and air intake temperature.
- If the communication is terminated, this item will automatically switch to sleep mode in half a hour.
- The adapter adopts fast and reliable chips which promise its stable wireless connection.
- It supports all OBDII protocols: J1850 VPW, J1850 PWM, IS09141 - 2, KWP2000 and CAN
- Small size and compact structure, plug and play.
With proper software installed in the host device, you may have following parameters read out from your vehicle:
Vehicle Speed
RPM
Fuel Consumption
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim

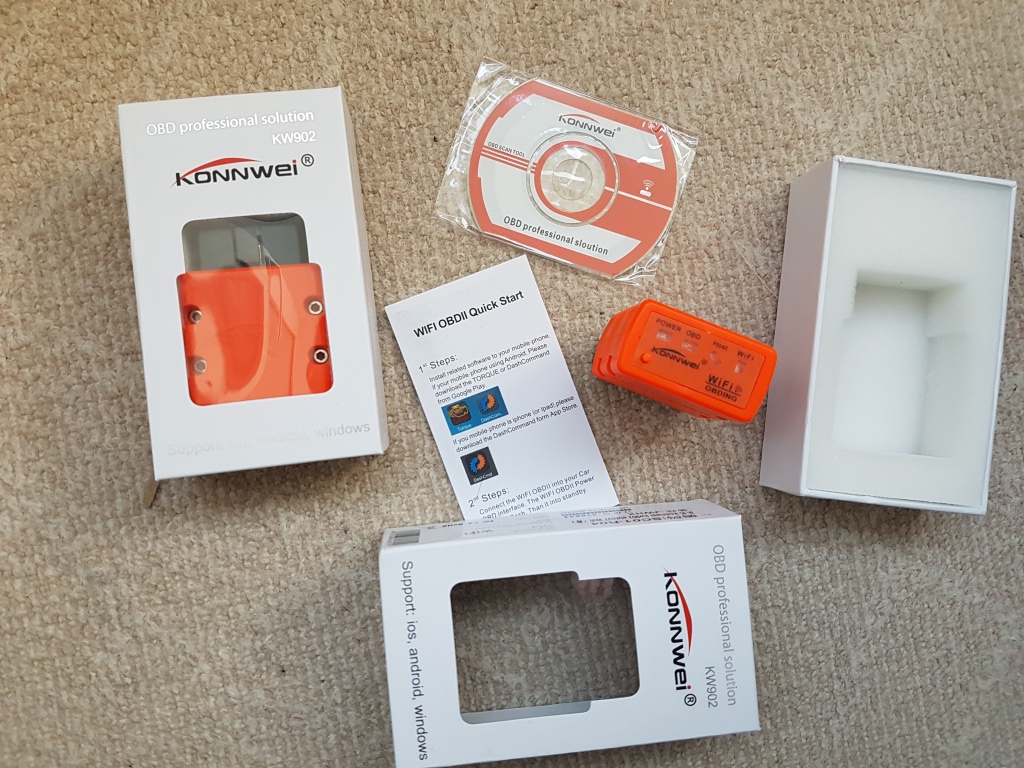

Package including:
1x KW902 WIFI Car Diagnostic Reader
1x Software CD
1x User Manual
Features:
*Supply voltage(VDD):12V
*Work temperature range: -20 ~ +70C
*Storage temperature range:-40 ~ +125C
*RF sensitivity(Basic Rate): -85db
*Modulation Mode:GFSK
* Frequency Range:2402 ~ 2480MHZ
* Transmission Range:10M
* Bluetooth Profile:SPP
* UART Params:38400,8,n,1
* Small size, compact structure. Plug and never unplug
* Stable wireless connection
* No wires or batteries (adapter is powered by the diagnosis size sockets)
* Stop communication, wait half an hour, auto sleep
* Supports all OBDII protocols
* The adapter uses the fastest and most reliable ARM chips
kw902 scantool is a high-quality automotive scanning tool, supports all OBD-II
protocols :
0.Automatic
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)
