Diagnoza Autel MaxiDiag MD806 Pro Full System , la fel ca si Autel MD808 Pro
The all new MaxiDiag MD806 is built to take your diagnostic experience to a whole new level. Loaded with oil service reset, battery registration and reset, parking brake pad relearn after replacement, steering angle senzor relearn and diesel particulate filter regeneration functions, MD806 can access Engine, Transmission, ABS, and Airbag (SRS) systems for the best diagnosis operations. With all that enclosed in a4 -inch hand-held device, there is no better multifunctional scan tool on the market.
MD806 Pro Supports : English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian, Greek, Simplified Chinese.
Autel MD806 Pro Features:
1. Autel MD806 Pro ALL System Diagnoses
- Guide Directly to the Fix and Eliminate Guesswork, MD806 PRO allows you to:
- ) Retrieve ECU information of tested control units including unit type, version numbers, and other specifications;
- ) Read & Erase DTCs to locate problem areas and clear the codes easily;
- ) View live data of each parameter item;
- ) Get access to all vehicle systems and subsystems, such as Engine; Automatic Transmission; Suspension; Audio; IMMO Immobilizer; Aer Conditioning; Auto Headlamp; ACC; Car Radio Audio; Car Door Windows etc. To perform a comprehensive scanning process on ECUs to locate the faulty systems and retrieve the DTCs related.
Read and clear trouble codes for Special Functions
OLS - Suport oil service resetMaxiDiag MD806 Pro Service:
BMS - Suport battery registration and reset
DPF - Diesel particulate service including forced regeneration
SAS - Reset steering angle senzor functionality
EPB - Relearn parking brake pad after replacement
Odometer - Reset service mileage and service intervals
The MaxiDiag MD806 Pro provide ABS, SRS (Airbag), Engine, Transmission, Oil Reset, EPB, DPF, SAS, BMS, Throttle and Adjust A/F functions for most modern vehicles on the road today. Select the Service function from the Main Menu to access the special functions.
1. Oil Reset:
The Engine Oil Life System calculates when to change the engine oil and filter based on vehicle use. An oil change is required whenever indicated by the display and according to the recommended maintenance schedule.Whenever the oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where the oil is change dprior to a service indicator being turned on, also reset the system.
This electric parking brake (EPB) function has a multitude of uses to maintain the electronic braking systems safely and effectively.
1). Ensure that you are fully familiar with the braking system and its operation before commencing any work.
2). The EPB control system may be required to be deactivated before carrying out any maintenance/diagnostic work on the brake system.This can be done from the tool menu.
3). Only carry out maintenance work when the vehicle is stationary and on level ground.
4). Ensure that the EPB control system is reactivated after the maintenance work has been completed.
Steering Angle Senzor Calibration permanently stores the current steering wheel position as the straight-ahead position in the steering angle senzor EEPROM. Therefore, the front wheels and the steering wheel must be set exactly to the straight-ahead position before calibration. In addition, the vehicle identification number is also read from the instrument cluster and stored permanently in the steering angle senzor EEPROM. On successful completion of calibration, the steering angle senzor fault memory isautomatically cleared
The DPF function allows you to carry out numerous functions on the Diesel Particulate Filter system without having to send your car to a main dealer.The tool will manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
The BMS (Battery Management System) allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, activate the rest state of the vehicle, and charge the battery via the diagnostic socket.
- ) Read & clear detected diagnostic trouble codes and turn off the Check Engine Light;
- ) Read I/M readiness status to have a vehicle inspected for state emissions compliance;
- ) View graphical live data of vehicle's computer module(s) for easy analyses;
- ) View the vehicle's operating parameters at the moment a DTC is detected;
- ) Show the last results of the O2 senzor test in the graphic display for troubleshooting;
- ) Read the results of on-bord diagnostic monitoring tests for specific components/systems;
- ) Component Test: Allow initiating a leak test for the vehicle's EVAP system;
- ) Retrieve the vehicle information of VIN, CINs, and CVNs completely.
3. Autel MD806 Pro Supports Muti-Language
Englsih, French, German, Spanish, Portuguese, Swedish, Italian, New Zealand, Polish, Swedish, Russian, Traditional Chinese, Japanese
4. Autel MD806 Wide Vehicle Coverage
MD806 Pro supports Global OBD II coverage for U.S. domestic, Asian and European makes and models. All OBD II protocols, all 10 test modes and enhanced OBD II mode 6 suport.
- Oil Reset Service Coverage:
*Asian For Acura, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Scion, Subaru, Suzuki, Toyota; AU Holden
*European For Audi, Abarth, Alfa, BMW, Bentley, Benz, Bugatti, Citroen, Dacia, Fiat, Jaguar, Lancia, LandRover, MINI, Maybach, Opel, Peugeot, Porsche, Renault,Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volkswagen, Volvo
*USA For Chrysler, Ford
*Asian For Acura, Honda, Hyundai, Infiniti, Kia, Lexus, Nissan, Scion, Toyota
*European For Audi, BMW, Bentley, Benz, Bugatti, Citroen, EU Ford, Jaguar, LandRover, MINI, Maybach, Opel, Peugeot, Porsche, Renault, Seat, Skoda, Vauxhall, Volkswagen, Volvo
*USA For Chrysler, Ford
SAS Service Coverage:
*Asian For Acura, Honda, Hyundai, Infiniti, Kia, Lexus, Maruti Suzuki, Mitsubishi, Nissan, Scion, Subaru, Suzuki, Toyota, AU Holden
*European For Audi, Abarth, Alfa, BMW, Bentley, Benz, Bugatti, Citroen, Dacia, EU Ford, Fiat, Jaguar, Lancia, LandRover, MINI, Maybach, Opel, Peugeot, Renault, Seat, Skoda, Vauxhall, Volkswagen, Volvo
*USA For Chrysler, Ford, GM
DPF Service Coverage:
*Asian For Acura, Honda, Hyundai, Infiniti, Kia, Lexus, Mazda, Mitsubishi, Nissan, Scion, Suzuki, Toyota
*European For Audi, Abarth, Alfa, BMW, Bentley, Benz, Bugatti, Citroen, EU Ford, Fiat, Jaguar, Lancia, LandRover, MINI, Opel, Peugeot, Renault, Seat, Skoda, Sprinter, Vauxhall, Volkswagen, Volvo
*USA For Chrysler, Ford, GM
BMS Service Coverage:
*Asian For Infiniti, Lexus, Mitsubishi, Nissan, Scion, Suzuki, Toyota
*European For Audi, BMW, Bentley, Bugatti, Citroen, Jaguar, LandRover, MINI, Peugeot, Porsche, Seat, Skoda, Volkswagen, Volvo
*USA For Ford
Throttle Service Coverage:
*Asian For Acura, Daewoo, HONDA, Hyundai, Infiniti, Kia, Lexus, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Scion, Suzuki, Toyota, AU Holden
*European For Audi, Abarth, Alfa, Bentley, Bugatti, Citroen, Dacia, Fiat, FordEU, Jaguar, Lancia, LandRover, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda, Vauxhall, Volkswagen
*USA For Chrysler, Dodge, Ford, GM, Jeep
5. Autel MD806 Pro Other Features
- Supports AutoScan
- -1 Year Warranty
- - Lifetime Free Update
- - Print diagnostic reports via PC connection
Autel MD806 Pro Specification:
Processor : ® Thumb® Processor running at up to 400 MHz
- Memory: 32MB, 166 MHz
- Display: 4.0 inch LCD with 800 x 480 resolution
- Connectivity: Mini USB: 2.0; Micro SD Card (16GB)
- Power Consumption: 1.7 W
- Operating Temperature: -10°C to 60°C (14°F to 140°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
- Operating Humidity: 5% - 95% non-condensing
- Housing: Strong plastic housing with protective rubber boot
- Dimensions: 202 mm x 92 mm x 35 mm (8.35” x 3.62” x 1.4”)
- Weight: 313 g (0.69 lb.)

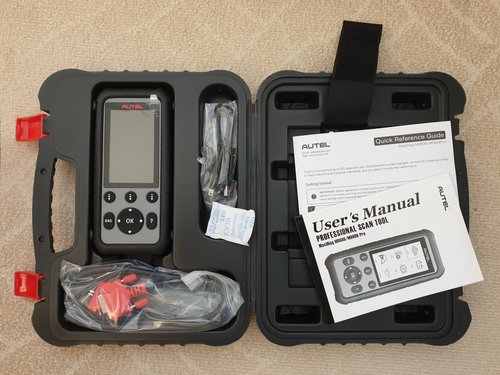

Autel MD806 Pro Package List:
1x MD806 Pro Main Unit
1x User Manual
1x OBD II Cable
1x USB Cable
1x Micro SD Card
1x Quick Guide
1x Carry Case
