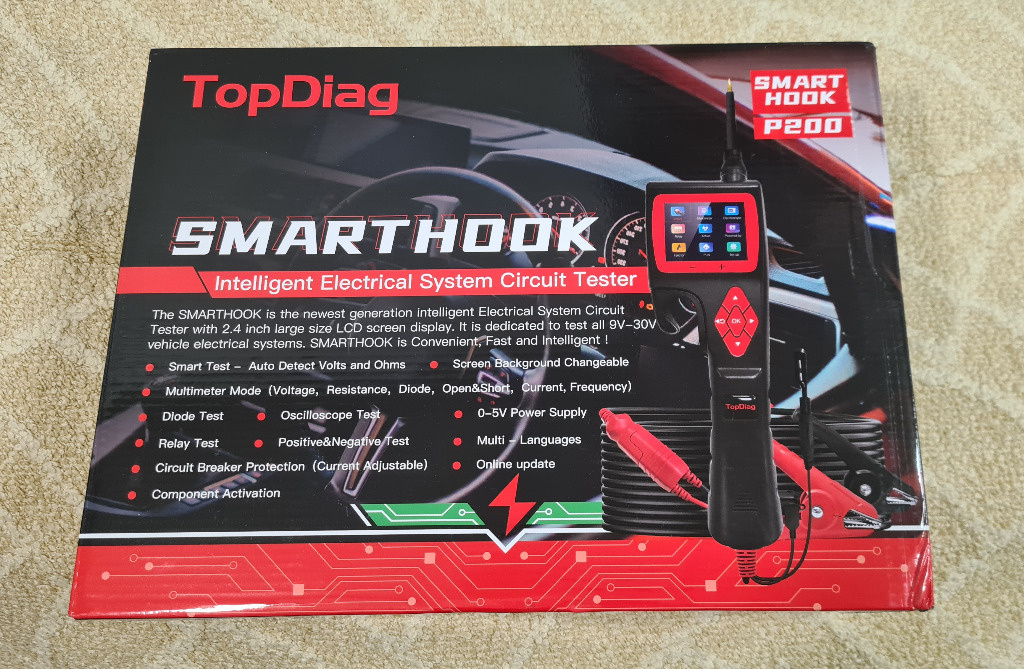

JDIAG P200 SMART HOOK Powerful Probe 9V-30V tester circuite electrice

P200 SMART HOOK  Powerful Probe, the new generation of intelligent circuit analyzer, is the only circuit tester that can be upgraded on the market. It can test all 9V-30V electronic systems quickly. The test time can be greatly shortened, making it more convenient, faster and smarter!

P200 SMART HOOK  Powerful Probe, the new generation of intelligent circuit analyzer, is the only circuit tester that can be upgraded on the market. It can test all 9V-30V electronic systems quickly. The test time can be greatly shortened, making it more convenient, faster and smarter!

JDiag P200 Highlights:

1.Free Update Online
2.Cable length: 6.0Meters. With connector,it is more than 6.0 Meters.It makes work more easier.
3.The test time is greatly shortened, convenient, fast and smarter!
4.For all 9V-30V electronic systems, Supports Car Truck Motorcycle Boat
5.Multi-langauges:English,Spanish,Dutch,French,Italian,Portuguese,Polish,Russian,Vietnamese,Chinese.You can change launguese by yourself at any time.
6.Enjoy one year warranty.

JDIAG P200 Features：

1.Intelligent identification of voltage/resistance
2.Multimeter mode (measure voltage, resistance, diode, continuity, current and frequency)
3.Relay test
4.Injector test
5.Diode test
6.Oscilloscope function
7.0-5V adjustable power supply
8.Activation of vehicle components
9.Positive and negative polarity test
10.Intelligent circuit breaker protection (adjustable overload)
11.Screen style background optional
12.Network can be upgraded online
13.Built-in Multi-lingual settings.

Breif User Manual:

Power supply connection
The probe is powered by the vehicle battery.Connect the RED clip to the positive pole of the battery,and the BLACK clip to the negative pole of the battery.The machine will automatically start to enter the working interface.The front led light will illumiate the test area,which is convenient for operation in the dark area.

Key Buton Operation
In different functional interfaces,the key functions performed are not exactly the same.
Left key-- navigatie key or exit key
Right key-- navigatie key
Up key-- navigatie key or voltage output,numerical adustment.
Down buton --navigatie buton or voltage output,numerical adjustment
OK--confirm key.

How to Update SigmaProbe Firmware Online?

1. After setting interface, Select the Update menu to enter into Update mode. Connect PC with the USB cable to Probe, Open update tool on a computer to start the update.

2. Press the "LEFT" and "OK" buttons at the same time to enter into Update mode. Connect PC with the USB cable to Probe, Open update tool on a computer to start the update.

Product specifications and parameters

1) Display:............ (320*240 DPI) TFT true color display
2) Working temperature: ........... 0-60°C (32-140 F°)
3) Storage temperature:...........40-70°C (-40-185 F°)
4) External power supply: ... 12V or 24V powered by battery
5) Minimum working voltage:...9V
6) Maximum working voltage: 30V
7) Maximum measuring voltage: 150V
8) Minimum measuring voltage: .....................0.1V
9) Resistance measurement range:... 1 ohm~200K ohm
10) Current measuring range: ..................... 0~18A
11) Maximum continuous current: ..................... 18A

 Packing list:

1) Main unit
2) Solid cooper test probe
3) Double pass test connection line
4) Alligator clip battery cable (Special Design)
5) Relay test line
6) Probe adapter
7) 25Amp fuse
8) Operation manual
9) Packing Toolbox
