Vgate Wifi OBD2 Scanner iOS, Engine Fault Diagnostic Code, chip PIC18F2480

115 Lei

Description:

Vgate WiFi OBD2 Scanner, Bluetooth Engine Fault Diagnostic Code, chip 2480


Can be used on Iphone,Ipad and so on...
Wifi OBD VGATE Technical Specifications
SSID: WIFI OBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius
Plastic: Automotive Grade
Physical Dimensions: 2.75 x 1.25 x 1.2 inches

Vehicle Compatibility
Works with all OBD2/EOBD compliant vehicles. Compatible with all OBD2 communication protocols.
OBD2 vehicles (1996 onwards in USA, 1998 in Canada) and EOBD vehicles (Petrol from 2001 and diesel from 2003/2004 in Europe).
Our products are applicable to 12V petrol vehicles compatible with standard OBD2 protocols, 12V small diesel vehicles with a load of 6.5T or less supporting the OBD2 protocols.
This device does not apply to heavy duty diesel 24V vehicles (i.e. semi trucks, tractors etc).

Features:
WiFiOBD is capable of communicating with vehicles which adopt following

protocols:
ISO 9141
ISO 11898(aka. CAN)
ISO 14230(aka. KWP2000)
ISO 15765(aka. CAN)
SAE J1939
WI-FI OBD AUTO CHECKER is able to detect and interpret these protocols automatically. It also provides suport for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with WI-FI OBD AUTO CHECKER. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained.
Elder OBD compatible vehicles has a sticker indicates that the vehicle is OBD compatible. Model year 1996 and newer vehicles are compliant by default, and will not have this sticker.
Following are some of the parameters which could be read from the vehicle.


Vehicle Speed
RPM
Fuel Consumption*
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim

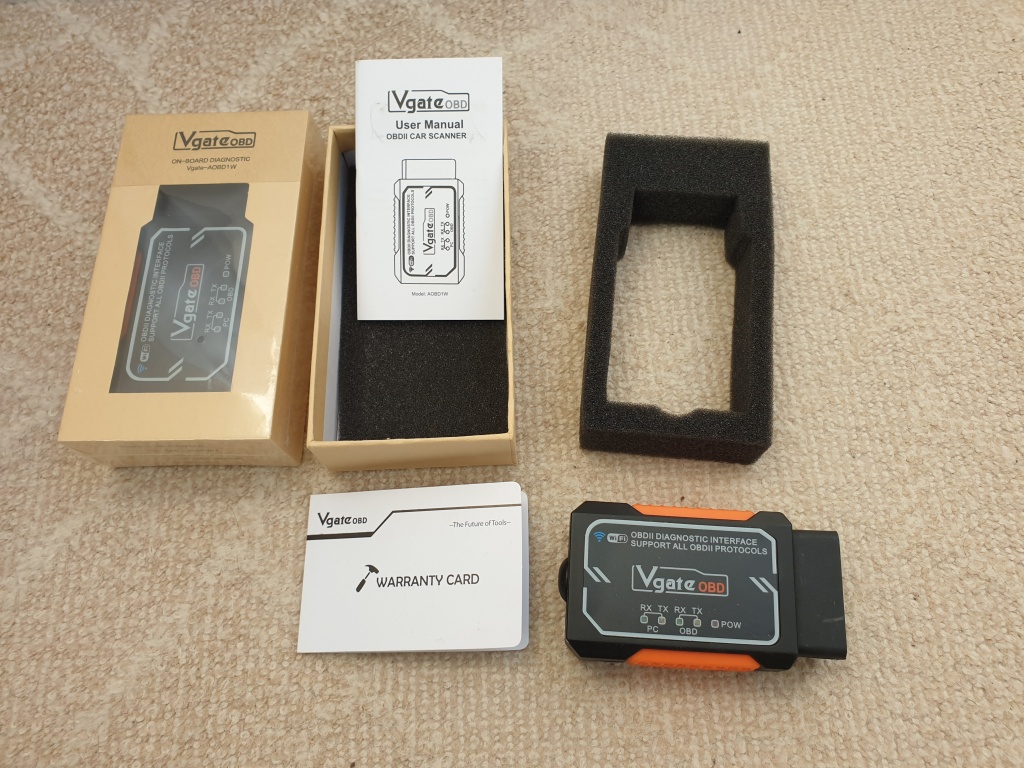

Package Includes:
1 x VgateOBD WiFi  OBD2 Scan Tool
1 x Manual

Compatibil cu:
Land Rover Range Rover
Lexus IS

Stare produs
Nou / Cu factură / Cu garanție
Piesă auto compatibilă cu:
Land-Rover Range Rover
