Creader C502, Diagnoza Mercedes Benz modele 2001-2016 - Motor, ABS, Airbag
475
Lei
Creator C502 OBD2 Diagnostic Tools For Mercedes Benz W211 W210 C200 W203 W204 Support ABS Airbag OBD 2 Autoscanner Code Reader
Creator C502 Brief Description
Creator C502 is a new featured OBDII code scanners mainly focused on the BENZ car diagnostic industry helping DIY-users and professional technician to fix the car's engine trouble and emission related errors. With the new patented design and true colorful wide screen, the C502 can easily and fast access the car computer system(ECU), diagnose the troubles from engine and erase them by one click. C502 would be the best solution for home users & professional technicians, save your time and money to service station!
Creator C502 OBDII & EOBD Software Description:
Supports for BNEZ models before 2016
Include Chassis: 117, 129, 140, 156, 163, 164, 166, 168, 169, 170, 171, 172, 176, 197, 199, 202, 203, 204, 205, 207, 208, 209, 210, 211, 212, 215, 216, 217, 218, 219, 220, 221, 222, 230, 231, 240, 245, 246, 251, 253, 292, 461, 463, X 164, X 204
Works on all 2001 and later OBDII compliant PETROL European vehicles
Works on all 2004 and later OBDII compliant DIESEL European vehicles
Works on all 1996 and later OBDII compliant US and Asian vehicles
Creator C502 Functions: Read codes, Erase codes, ECU information
Supports multiple code requests: Generic, manufacturer specific and pending codes.
Clears codes, turns off Check Engine Light (MIL) and resets monitors.
DTC definition can be automatically displayed after reading DTC.
Reads freeze frame data which shows engine conditions such as fuel trim, engine coolant temp etc., at the time the Malfunction Indicator Lamp (MIL) was set.
Displays monitor and I/M readiness status (emissions)
Read and record live PCM data stream, display in text mode and graphical mode.
Reads live O2 sensor Data
Enhanced OBD2 Mode 6 On Board Monitoring Test Results for Specific Monitored Systems.
Retrieve EVAP Leak Test results
Retrieves vehicle information (VIN, CIN and CVN)
Real time Battery Voltage monitoring.
Troubleshooter code tips guide technicians to the root cause of a trouble code faster, saving diagnosis and repair time
Easy update the scanner to support future vehicles and fix potential bugs if available.
Print out diagnostic data (trouble codes, freeze frame, live senor data) via PC
Creator C502 Specifications:
A) Display: Color, 320 x 240 pixel display with contrast adjustment
B) Operation Temperature: - 20 ℃ -- 75 ℃
C) Storage Temperature: -40 ℃ -- 120 ℃
D) Power: 8V -- 24V
Multilingual diagnostic interface: CR502 Supports up to 2 different languages user interface,
English, Chinese
A communication error occurs if the scan tool fails to communicate with the vehicle’s ECU (Engine Control Unit).
You need to do the following to check up:
A) Verify that the ignition is ON;
B) Check if the scan tool’s OBD II connector is securely connected to the vehicle’s DLC;
C) Verify that the vehicle is OBD2 compliant;
D) Turn the ignition off and wait for about 10 seconds. Turn the
E) Ignition back to on and continue the testing.
F) Verify the control module is not defective
Scan tool doesn’t power up
If the scan tool won’t power up or operates incorrectly in any other way, you need to do the following to check up:
A) Check if the scan tool’s OBD II connector is securely connected to the vehicle’s DLC;
B) Check if the DLC pins are bent or broken. Clean the DLC pins if necessary.
C) Check vehicle battery to make sure it is still good with at least 8.0 volts.
6. Software update
There are TF card,you just need insert into your pc ,you can update it directly ,or please visit the website: and Read the newe upgrade description about C50X.

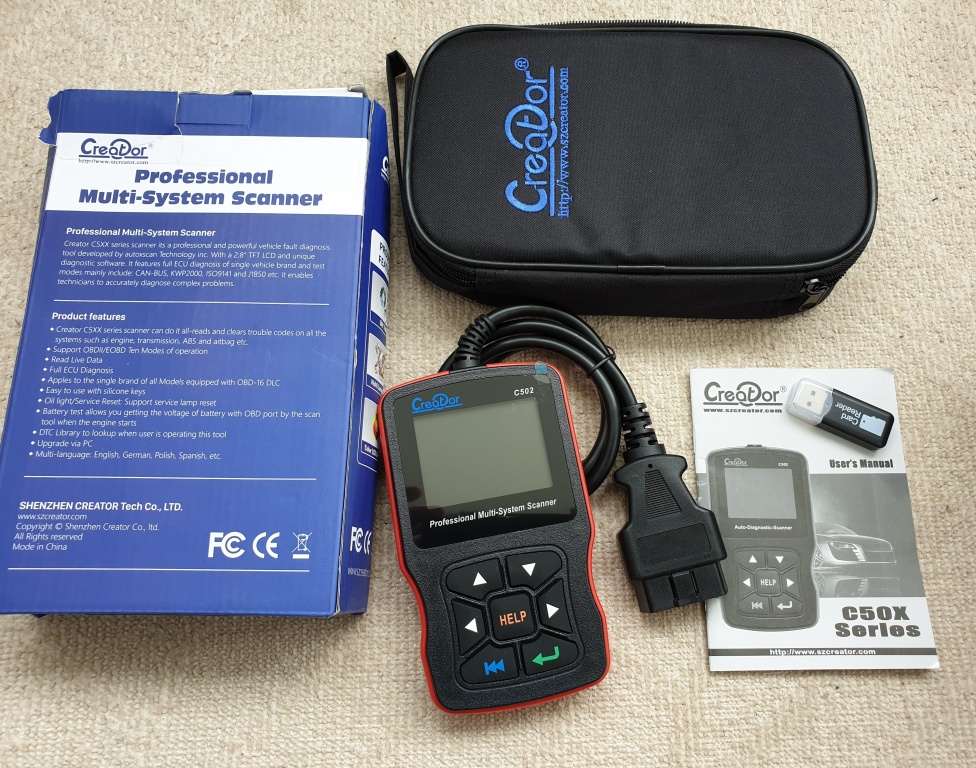

1 x Creator C502 OBD2 Diagnostic Tools
1 x English User’s Manual
1x protective nylon bag
Compatibil cu:
Mercedes C-Class W204, C-Class W203, E-Class W210, E-Class W211
Stare produs
Nou / Cu factură / Cu garanție
Piesă auto compatibilă cu:
Mercedes C-CLASS W203
Mercedes C-CLASS W204
Mercedes E-CLASS W210
Mercedes E-CLASS W211
Mercedes X-CLASS
Mercedes C-CLASS W204
Mercedes E-CLASS W210
Mercedes E-CLASS W211
Mercedes X-CLASS
