Tester injectoare CRI808S Electromagnetic, piezo, C7 C9 HEUL Bosch Delphi Denso
Descriere
CRI808S foarte util si convenabil pentru telefonul mobil Android si Windows prin Bluetooth si pentru reparare injector common rail ca instrument inteligent de reparatie common rail, functia sa este utilizata pentru a conduce injector common rail, oferind in acelasi timp Delphi, CAT, Piezo si alte semnal de control al injectorului common rail pentru a actiona injectorul common rail de inalta presiune sa functioneze, parametrii semnalului de actionare pot fi efectuati de utilizator in functie de situatia lor reala si pot fi salvati grupati pentru o intretinere usoara personal la injector de inalta presiune common rail in stare de functionare pentru a judeca diferite conditii si intretinere.
Parametri tehnici:
Ecran: display LCD de 1,4 inch 128 * 64.
Tensiunea de intrare: AC220V / 110V sau DC24V.
Curent de functionare: valoare tipica: <1A
Consum tipic de energie: <24W.
Mod de conectare: interfata 4Pin (port electromagnetic si piezo).
Temperatura de functionare: 0-50.
Temperatura de depozitare: -20, ~ 70.
Umiditate relativa: 60%.
dimensiunea pachetului: 260 * 210 * 11.

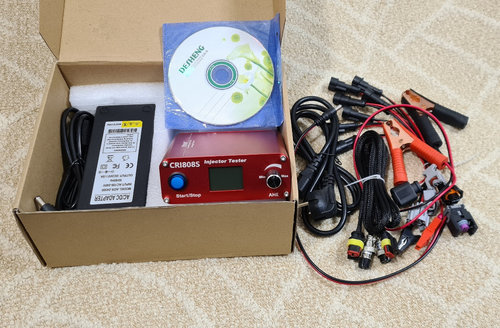

Continut pachet:
1. Unitate principala * 1buc
2. Cablu principal Piezo * 1buc
3. Cablu principal magenatic * 1buc
4. Conector piezo * 1buc
5. Conector Bosch * 1buc
6. Conector Delphi * 1buc
7. Conector Denso * 1buc
8. Cablu clema * 1buc
9. Cablu clema DC24V * 1buc
10. Alimentare * 1set
11. CD * 1buc
12. Manual * 1buc
1. Piezo Injector Tester
3. Solenoid Injector dynamic AHE Tester
( 3 IN 1 Function )
Suport Bluetooth Wireless Control Common rail injector tester.
Suport Android Mobile Phone Control
Suport Windows Computer Control
CRI808s is very useful and convienent operation by android mobile phone and windows computer throught bluetooth and taken for repair common rail injector as smart common rail repair tool, its function is used to drive common rail injector, while providing Bo-sch, Den-so, Del-phi ,C-A-T , and Piezo and other common rail injector control signal to drive the high-pressure common rail injector to work, drive signal parameters can be carried out by the user according to their actual situation, and can be saved grouped for easy maintenance personnel to high-pressure common rail injector in working condition to judge different conditions and maintenance.
CRI808S as common rail injector tester dynamic AHE tester for Bossch Densso Del-phi and C-AT diesel solenoid injector
Top 8 Reason to buy:
1. Suport diesel electromagnetic/Solenoid and piezo injectors.
2. Can test multi-types injector such as BOS-CH, DEN-SO,DEL-PHI, PIZEO, C-AT etc. (Tips: Toyotaa 1KD, 2KD excluded) , by the way, Suport siemens piezo injector .
3. Suport Blue-tooth Connection for And-roid Phone to Control (iSO excluded)
4. Suport Blue-tooth Connection for Windows Computer software operation (iSO excluded)
5. Suport AC220V/AC110V and DC24V input. width pluse and frenqucy adjust, frenqucy: 1hz-30hz.
6. Automatically identify the type of injector and counting.
7 Smart, Mini Machine to repair convienently to go outside.
8. Suport multi-type working status for different test demand,like VL,VL, TL, LL, VE.
9. Suport Solenoid injector dynamic AHE tester
Technical Parameters:
Screen: 1.4 inch 128*64 LCD display.
Input voltage: AC220V/110V or DC24V.
Operating current: typical value: <1A
Typical power consumption: <24W.
Connection mode: 4Pin interface (electromagnetic and piezo port).
Operating temperature: 0-50 .
Storage temperature: -20 , ~70 .
Relative humidity: 60%.
package size: 260*210*11.
package weight: 1.6kg
1. Main Unit Machine * 1pcs
2. Piezo main cable* 1pcs
3. Magenatic main cable * 1pcs
4. Piezo connector*1pcs
5. Bo-sch connector *1pcs
6. Del-phi connector*1pcs
7. De-nso connector *1pcs
8. Alligator clip cable*1pcs
9. DC24V Alligator clip cable*1pcs
11. CD * 1pcs with manual and video in it
Compatibil cu:
Volkswagen LT
Lexus IS
