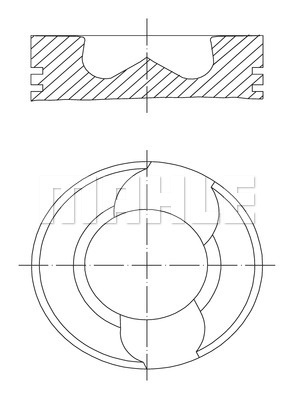

Piston la cilindrul 3 (0309800 MAH) VW

Piston la cilindrul 3 (0309800 MAH) VW
Pozi?ia de montare: la cilindrul 3
Denumire produs: Piston
Grupul de adunare: Angrenaj arbore cotit
Producator: MAH
Cod produs: 0309800
Folosit si pentru: VW

Specificatii produs:
Adancime oala 1 [mm]: 18,2
Adancime scaun supapa 1 [mm]: 1,5
Alezaj piston [mm]: 81,01
Articol completare/Info suplimentar 2: cu canal de racire
Articol completare/Info suplimentar 2: cu segment piston
Articol extins/Informatii de extindere: cu inel piston
Bolt-? [mm]: 26,0
Diametru oala [mm]: 37,9
Greutate net? [g]: 589,0
Inaltime ambalaj [cm]: 13,80
Inaltime compresie [mm]: 45,75
Inaltime perete [mm]: 9,5
Joc al pistonului [mm]: 0,05
Latime ambalaj [cm]: 10,00
Lungime ambalaj [cm]: 10,0
Lungime bolt [mm]: 66,0
Lungime [mm]: 69,75
Lungime [mm]: 70
Numar componente: 1. R2,5 IW CrK
Numar componente: 1. R2.5 IW CrK
Numar componente: 2. M 2,0 IFU P
Numar componente: 2. M 2.0 IFU P
Numar componente: 3. DSF 3,0 Cr
Numar componente: 3. DSF 3.0 Cr
Numar de productie: 81 L 103
Partea de montare: la cilindrul 3
Partea de montare: la cilindrul 4
Partea de montare: la cilindrul 5
pentru cilindru: 3-5
Prelucrat mecanic: cu degajare/decupare pentru duza ulei
Suprafata: acoperit (cu un strat protector)

Coduri echivalente:
AUDI 070107065AL
CUPRA 070107065AL
EAN 4009026731178
KOLBENSCHMIDT 41 092 600 [41092600]
NRAL 87 421000 20 [8742100020]
NRAL 87 891100 12 [8789110012]
usernumber 56 13238 0 [56132380]
usernumber 81 L 103 [81L103]
VAG 070 107 065 A L [070107065AL]
VW 070 107 065 A L [070107065AL]

Pies? auto compatibil? cu:
VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF) 2.5 TDI 4motion [05.2007 - 11.2009] (2461ccm, 128Kw, 174HP)
VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF) 2.5 TDI 4motion [05.2007 - 11.2009] (2461ccm, 96Kw, 130HP)
VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF) 2.5 TDi [05.2007 - 11.2009] (2461ccm, 120Kw, 163HP)
VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF) 2.5 TDI [05.2007 - 11.2009] (2461ccm, 128Kw, 174HP)
VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF) 2.5 TDI [05.2007 - 11.2009] (2461ccm, 96Kw, 130HP)
VW CARAVELLE V bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC) 2.5 TDI 4motion [07.2004 - 11.2009] (2461ccm, 128Kw, 174HP)
VW CARAVELLE V bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC) 2.5 TDI 4motion [07.2004 - 11.2009] (2461ccm, 96Kw, 130HP)
VW CARAVELLE V bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC) 2.5 TDI [04.2003 - 11.2009] (2461ccm, 128Kw, 174HP)
VW CARAVELLE V bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC) 2.5 TDI [04.2003 - 11.2009] (2461ccm, 96Kw, 130HP)
VW CARAVELLE V bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC) 2.5 TDi [11.2003 - 11.2009] (2461ccm, 120Kw, 163HP)
VW EUROVAN V caroserie (7HA, 7HH, 7EA, 7EH) 2.5 TDI 4motion [07.2004 - 11.2009] (2461ccm, 128Kw, 174HP)
VW EUROVAN V caroserie (7HA, 7HH, 7EA, 7EH) 2.5 TDI 4motion [07.2004 - 11.2009] (2461ccm, 96Kw, 130HP)
VW EUROVAN V caroserie (7HA, 7HH, 7EA, 7EH) 2.5 TDI [04.2003 - 11.2009] (2461ccm, 128Kw, 174HP)
VW EUROVAN V caroserie (7HA, 7HH, 7EA, 7EH) 2.5 TDI [04.2003 - 11.2009] (2461ccm, 96Kw, 130HP)
VW EUROVAN V platou / sasiu (7JD, 7JE, 7JL, 7JY, 7JZ, 7FD, 7FE, 2.5 TDI 4motion [04.2004 - 11.2009] (2461ccm, 128Kw, 174HP)
VW EUROVAN V platou / sasiu (7JD, 7JE, 7JL, 7JY, 7JZ, 7FD, 7FE, 2.5 TDI 4motion [07.2004 - 11.2009] (2461ccm, 96Kw, 130HP)
VW EUROVAN V platou / sasiu (7JD, 7JE, 7JL, 7JY, 7JZ, 7FD, 7FE, 2.5 TDI [04.2003 - 11.2009] (2461ccm, 128Kw, 174HP)
VW EUROVAN V platou / sasiu (7JD, 7JE, 7JL, 7JY, 7JZ, 7FD, 7FE, 2.5 TDI [04.2003 - 11.2009] (2461ccm, 96Kw, 130HP)
VW MULTIVAN Mk V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.5 TDI 4motion [07.2004 - 11.2009] (2461ccm, 128Kw, 174HP)
VW MULTIVAN Mk V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.5 TDI 4motion [07.2004 - 11.2009] (2461ccm, 96Kw, 130HP)
VW MULTIVAN Mk V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.5 TDI [04.2003 - 11.2009] (2461ccm, 128Kw, 174HP)
VW MULTIVAN Mk V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.5 TDI [04.2003 - 11.2009] (2461ccm, 96Kw, 130HP)
VW MULTIVAN Mk V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 2.5 TDI [11.2003 - 11.2009] (2461ccm, 120Kw, 163HP)
VW TOUAREG (7LA, 7L6, 7L7) 2.5 R5 TDI [01.2003 - 05.2010] (2461ccm, 128Kw, 174HP)
VW TOUAREG (7LA, 7L6, 7L7) 2.5 R5 TDI [08.2003 - 05.2010] (2461ccm, 120Kw, 163HP)
