Diagnoza Autel MaxiIM IM608 II (IM608 PRO II) key Programmer + Gbox3

Product Description

1. IM608 II improved firmware, Android 10, larger RAM, ROM, with new JVCI+ VCI.

2. Add bulit-in DoIP and CAN FD protocol (don’t need converter)

3. Suport remote expert function

2024 Autel MaxiIM IM608 II Key Programmer Two Years Free Update without IP Limitation

Autel MaxiIM IM608 II Highlights:

1. IM608 II = IM608 PRO II

2. No Area/IP Restrictions

3. Two Years Free Update Online. (After two Years, IM608 II Software Subscription Cost 800USD/ Year)

4. Upgraded Version of Autel IM608 and IM608 PRO, with the latest powerful hardware configuration

5. Smart Mode and Expert Mode Solution In One Tool to Easy Operation, Works for 85% Cars In the Wordwide, Include BMW, BENZ, VW, AUDI etc

6. Suport Multi-Language: Both Diagnose Software and IMMO Software Suport Multi-Language. (Default Language is English, Can Be Changed Language to German, Swidish, Italian, Portuguese, French, etc.)

7. 10.1-inch LCD Capacitive Touchscreen

8. Ambient Light Senzor – detects ambient brightness.

9. Works for 85% Cars In The Wordwide, Include BMW, BENZ, VW, AUDI etc. make your work simple and easier, Best Choice for Locksmith and Workshop

10. Extended to Work with Autel MV108/ MV105 allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure safely and quickly.

Difference between IM608 II and IM608:

1. IM608/Pro II has improved firmware, Android 10, larger RAM, ROM, with new JVCI+ VCI.

2. Supports CAN protocol read and write without a password

3. Add bulit-in DoIP and CAN FD protocol (don't need converter)

4. Suport remote expert function

Features:

1. 9. IMMO ECU reset/ adaptation, refresh coding

2. Transpronder read/ write, EEPROM/ MCU read/write

3. Android Operating System for fast boot-up and multitasking

4. Expert Mode for advanced key learning

5. Powerful combination of key programming/ all system diagnostics/ advanced maintenance services

6. Smart Mode for guided and automated key learning

7. Read PIN/ CS (all key lost) , key generation, key learning, remote learning

8. Powerful OE level diagnostics for more than 80 US, Asian and European makes and models

9. Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS senzor ID relearn

Functions:

1. IMMO Functions

Auto Detect Make/Model/Year/System

Read PIN (All Key Lost)

Key Learning

IMMO ECU Reset/Adaption

IMMO ECU Refresh/Coding

Remote Learning

AUDI Q5/A4/A5 2015-2017 Key Learning

VW MQB Key Learning

BMW FEM/BDC Key Learning and Adaption

BMW CAS4 Key Learning and Adaption

Mercedes Key Learning

2015-2018 Land Rover & Jaguar write key via dump

Volvo Smart Key Learning/knob-style smart key

Autel im608 pro ii immo

In comparison with its predecessor IM608/ IM508, the Advanced IMMO & Key Programming scaun tool IM608 Pro is upgraded with the following new abilities:

EEPROM - added 60 chip types, now supports 445 types

MCU– added 32 chip types, now supports 2067 types

Odometer – added 162 chip types, suport 171 types

Engine ECU – added 1 chip type, now supports 41 chip types

Immobilizer ECU – added 3 chip types, now supports 181 chip types, Key unlock – supports 11 key types

BMW EWS3 key learning , Mercedes-Benz W209 EIZ read/write/erase

OEM Mercedes-Benz NEC key learning

2. The XP400 Pro has been extended IMMO functionalities on BMW, BENZ and Audi etc., designed to work with IM508, IM608, IM608 Pro to perform various IMMO Key programmings, key chip programming functions, MCU writing and reading,etc. Auto Detect Make, Model, Year, System. Read PIN (All Key Lost), Key Learning, IMMO ECU Reset/Adaption, IMMO ECU Refresh/Coding, Remote Learning

For AU-DI Q5/ A4/A5 2015-2017 Key Learning

For VW MQB Key Learning

For BM-W FEM/ BDC Key Learning and Adaption

For BM-W CAS4 Key Learning and Adaption

For Mercedes Key Learning

For 2015-2018 Land Ro-ver & Jag-uar write key via dump

For Volvo Smart Key Learning/ knob-style smart key, etc.

Autel im608 pro ii key programming

1) XP400Pro Adds Suport for Following Chips:

EEPROM-->>AMD-->>AM29FXXX series chip

EEPROM-->> FUJITSU-->> MB29FXXX series chip

EEPROM-->> ST-->> M29FXXX series chip

Engine control module-->> ST-->> M29FXXX series chip

IMMO-->> BENZ-->> ESL_W209_W906 (Motorola) read/write/erase function

IMMO-->> BMW-->>EWS3 module read/write function

REMOTE_RENEW(renew key)-->> NEC-->> V51 and V5 chip read/write/erase

2) XP400 Pro Adds Suport for Following Adaptor Bord:

APB113 PCF79XXadaptor bord

APB114 EWS3 adaptor bord

APB115 NEC Adapter bord

APB118 NEC ELV adaptor bord

APB119 TB28FXXXadaptor bord

APB120 TMS370adaptor bord

APB121 AM29FXXX Adapter bord

APB122 AM29FXXX adaptor board1

APB123 AM29FXXX adaptor board2

APB126 M35080/D80 adaptor bord

APB127 MC68HC0(7)05BXX adaptor bord

APB128 MC68HC05X32 adaptor bord

3. OE-Level Diagnostics

Simply accessing the diagnostic modes via AutoVin or Control Unit, and you' re able to perform diagnosis over all the systems on the vehicle' s ECU in order to locate fault systems and retrieve DTCs.

1) ECU Coding – Match Component and Flash Hidden Functions

IM608Pro can do ECU Coding the lower-grade IM508 can’t do. It enables you to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts just like MS908. It also has personalized settings. Using this setting feature, you can disable annoying functions and unlock the hidden functions of the scanner by setting parameters to control the sound, lights, windows, doors, etc. on the car.

2) Active Test – Diagnose the Real Cause of the Troubles

This function allows the diagnostic tablet to command an actuator, such as a relay or solenoid, to see whether it’s actually performing its task. It can be used to see if all the warning lights are still functioning, if all solenoids are still working, if all the car functions are still up to par (e.g. interval of windshield wipers), etc. Use the bi-directional control to identify and trace the exact faulty part on your vehicle, and send commands to do some other advanced maintenance and service functions.

4. Advanced Service Functions

* Oil Reset: Reset service mileage & service intervals after engine oil is changed.

* EPB Service: Resetting brakes after disc or pad replacement and etc.

* SAS Calibration: Clear SAS fault memory and reset the current steering wheel position as the straight-ahead position in the steering angle senzor EEPROM.

* DPF Regeneration: Performs DPF Regeneration to clear the blockage through continuous burning of the particulate matter captured in the DPF filter and turn off DPF light.

* ABS/SRS Services: Perform various active/functional tests to check ABS and SRS (Airbag) systems like ABS Brake Bleeding, Pump Motor Test and checking Module Information and etc.

* ABS Bleeding: Autel scanner allows you to check the operating conditions of the Antilock Braking System, such as Automated Bleeding, ABS Brake Bleeding enables technicians and home mechanics to bleed aer out of the ABS module and saves you time and money.

Autel IM608 II VS IM608 Pro

  IM608 IIIM608 Pro

AccessoriesVCIJVCI+JVCI

ProgrammerXP400 ProXP400 Pro

Hardware ConfigurationCPUQualcomm SDM660 Octa-core Processor

4x 2.2 GHz(A73)

4x 1.8 GHz(A53)Samsung Exynos T5260 6-Core Processor:

4x 1.3 GHz(A7)

2x 1.7 GHz(A15)

OSAndroid 10.0Android™ 4.4.2, KitKat

Memory4 GBRAM+128GB FLASH2 GBRAM+64GB FLASH

Display10.1 inches10.1 inches

Resolution1920*12001920*1200

Battery3.8V 15000 mAh3.8V 15000 mAh

BTBT V5.0 + EDRBT V2.1 + EDR

DoIPYesAdapter required

CANFDYesAdapter required

Diagnostic functionBasic functionsFull functionsFull functions

CodingYesYes

ProgrammingMercedes-Benz BMW systemMercedes-Benz BMW system

IMMO FunctionsMatching deviceFull functionsFull functions

ProgrammerEEPROM reading and writing, MCU reading and writingEEPROM reading and writing, MCU reading and writing

Key Tool FunctionYesYes

Remote expert/YesNo

Autel IM608 II Display:

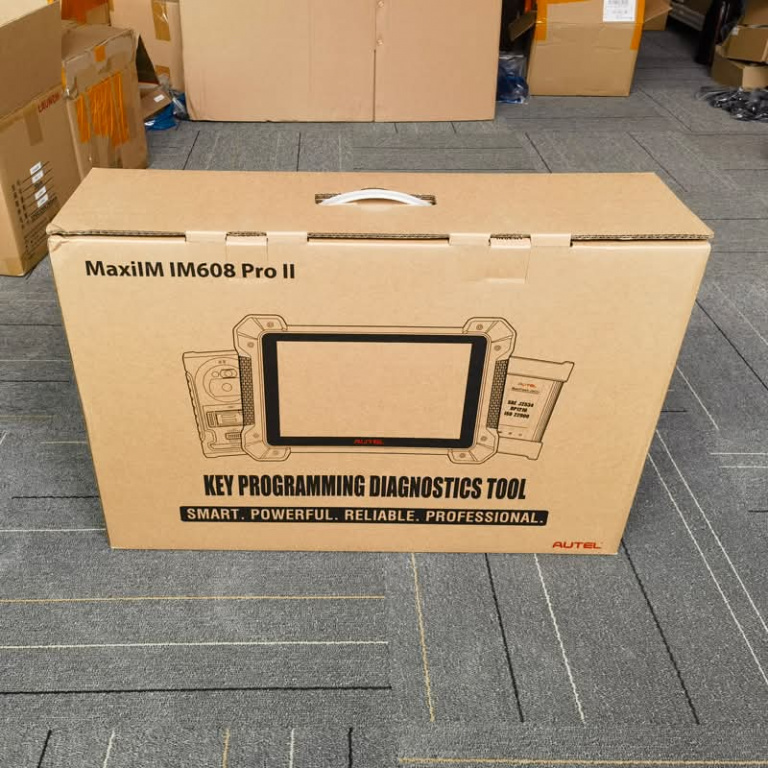

Package Including:

1pc x IM608 II Tablet

1pc x XP400 Pro Key Programmer

1pc x JVCI+ ECU Reprogrammer

1pc x Carry Case

1pc x Main Cable

1pc x USB Cable (2m)

1pc x Connect Cable

1pc x Mini USB Cable

1pc x AC/DC Adapter (12V)

1pc x AAC001

1pc x APC101 (USB Cable)

1pc x APB129 (EEPROM Adapter)

1pc x APB125 (Mercedes Infrared Collector)

1pc x APB104 (MCU_FQFP64)

1pc x APB105 (MCU_FQFP80)

1pc x APB106 (MCU_FQFP112)

1pc x APB107 (MCU_FQFP144)

1pc x APB108 (MCU_FQFP176)

1pc x APB109

1pc x APA002 (EEPROM Socket)

1pc x APA101 (Signal Cable)

1pc x APA103 (EEPROM Clamp)

1pc x APA107 (ECU Clamp)

1pc x APA108 (MCU Clamp)

1pc x APA109 (MC9S12 Clamp)

1pc x USB to Ethernet Adapter
