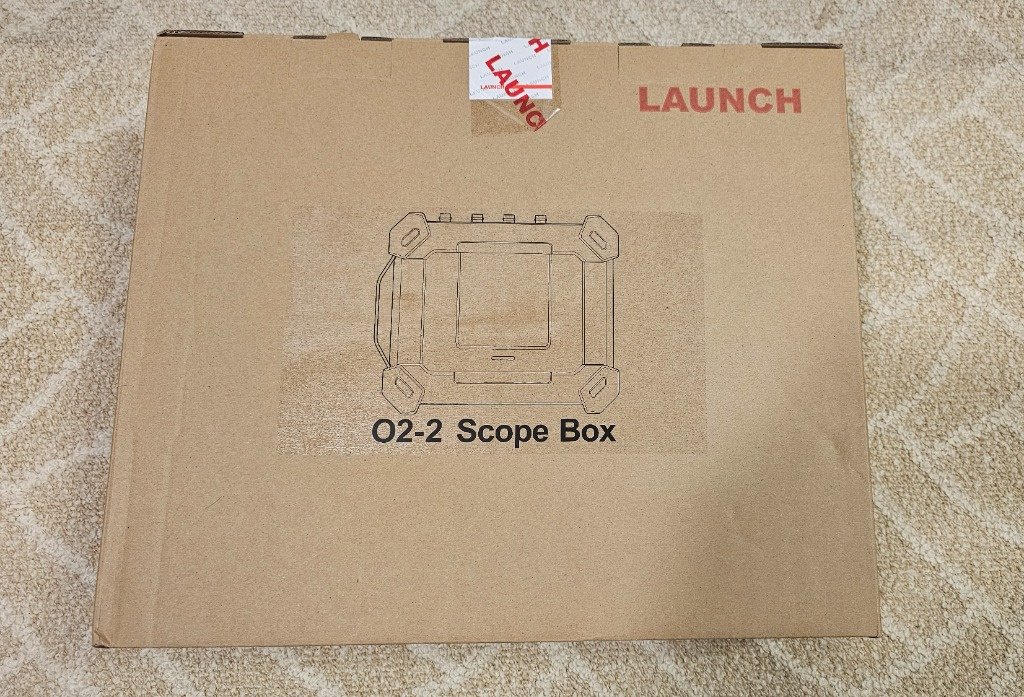

Osciloscop Launch O2-2 Scope Box 4 canale 100MHz, 10M Buffer, - PRO3S+ V5.0/PAD VII

3000 Lei

Nou, Cu factură, Cu garanție

Launch O2-2 Scope Box allows the user to capture a particular waveform which makes the process 70% more dfficient as compared to other scopes. It features the ability to record and playback high-resolution waveform data for future analysis. Its ability to input names and characters directly by clicking on the virtual keyboard streamlines the process and contributes to 90% of efficiency improvement.

LAUNCH X-431 Oscilloscope O2-2 Scopebox Analizador 4 Channels Digital Scopebox Tester USB Port

X-431 Oscilloscope O2-2 Scopebox Highligts:

4 channels

Bandwidth 100MHz

Auto configuration

Save waveforms with one click

Cursor measurement

One-click preset waveform parameter settings

Demo mode

Online help

Waveform math operations

23 automatic measurements

LAUNCH X-431 Oscilloscope works for x431 PRO ELITE,X431 Throttle, X431 Pad II AE, X431 Torque, X431 Turbo, X431 PAD V, X431 PAD VII Elite, X431 IMMO Elite, X431 IMMO PLUS etc.

Features:

One key enable function

Access to 23 variants of automatic measurements that are displayed on one screen for an easy switch.

Buffer memory up to 50M.

Use the zoom in/out feature to review precise details

Customizable personal system settings that can be saved as configuration files for viewing

Self-calibration function allows optimization of the oscilloscope signal path for maximum measurement accuracy.

Magnifies waveform math operations, such as addition, subtraction, multiplication and FFT function for high level waveform analysis.

Multiple automotive tests that include circuits, sensors, actuators, ignition tests and more.

Multi language user interface.

USB Sync Data Transfer to external devices such as laptop, tablet, etc....

Functions:

Supports multiple vehicle preset project tests

Supports a variety of automotive preset project tests, such as circuits, sensors, actuators, ignition tests, communication tests and combination tests, and presets various parameters and specific connection methods for each test.

23 automatic measurement settings

23 automatic measurement settings are displayed on one screen, which is clear at a glance and can be clicked with a light touch. It supports one-click clearing, eliminating the tediousness of turning pages and searching multiple times, making automatic measurement easy to use and convenient.

Quick trigger source switching

Supports edge, pulse and other triggers. Simple and intuitive trigger settings and fast trigger source switching methods make the most difficult part of oscilloscope application extremely easy.

Quickly create waveform preset parameters with one click

When testing waveforms, you can save the existing settings on the current interface as waveform preset parameters with one click. When testing similar waveforms later, you can directly load the preset parameters without repeated settings.

Quickly save waveforms with one click

Quickly save the waveform currently displayed on the screen with one click and automatically save it in the specified format. It can be directly used as a reference channel waveform for display later.

Convenient cursor operation

Turn on the horizontal and vertical cursors with one click respectively. Each cursor can be dragged independently, and cursor tracking is also directly implemented through simple highlight touches, improving overall efficiency by more than 80%.

Suport cursor/phase ruler changes accordingly

When the waveform is zoomed in/out, the cursor and phase scale can change accordingly, keeping the measurement range unchanged.

Supports 2-point touch, the waveform can be zoomed in or out vertically or horizontally

Drag horizontally or vertically with 2 points to zoom in or out the waveform horizontally or vertically.

Suport demonstration function

Preset sine waveforms to demonstrate common functions without connecting an oscilloscope.

Supports waveform math operations

Supports addition, subtraction, multiplication and division calculations of two channel waveforms, in addition to fast Fourier transform.

Comparison Between Launch O2-2 Scopebox and Launch O2-1 Scopebox

ModelO2-1O2-2

Channel44

Bandwith100MHz100MHz

Rise Time≤3.5ns(typical)≤3.5ns

Maximum sampling rate1Gbps(forfour channels)1Gbps

Input resistance1MΩ±1.5%1MΩ±1.5%

Storage depth50M10M

Number of sampling bits8bit8bit

vertical accuracy3%3%

Vertical gear5mV~10V5mV~10V

InvertingSupportSupport

Channel coupledDC, ACDC, AC

Time base gear5ns~1ks 1ns-1ks

Time base accuracy20ppm20ppm

Sampling modeNormalNormal

CANBus decodingCAN, LINCAN, LIN

Trigger typeEdge, Pulse widthEdge, Pulse width

Trigger modeNormal, Auto and Single SEQNormal, Auto and Single SEQ

Trigger couplingDC, Noise rejectionDC, Noise rejection

MathDouble waveFFTDouble waveFFT

DisplayYT、Zoom、RollYT、Zoom、Roll

Roll mode200ms/div~1000s/div200ms/div~1000s/div

Auto configurationSupportSupport

Auto measurement2323

CursorHorizontal cursor, Vertical cursorHorizontal cursor, Vertical cursor

Powered byUSB port, DC IN portUSB port, DC IN port

Data transmission methodUSBUSB

Vehicle configuration optionsCircuits, senzor, actuators, ignitionCircuits, senzor, actuators, ignition

Operating temperature0℃~50℃0℃~50℃

Power supply rangeUSB:5V/1A

DC:12V/24VUSB:5V/1A

DC:12V/24V

CompatibilityDifferent tablet resolutions require different APPsOne APP can be compatible with multiple tablet resolutions

Multi-touch gesturesNoSupports 2-point touch, the waveform can be zoomed in or out vertically or horizontally

Vehicle configurationNoEach test project can suport online help documentation (help documentation will be compiled according to needs later)

Firmware upgradeManual upgradeSupport online upgrade

TriggerWaveform observation cannot be expanded during normal trigger waiting.Can be used normally during normal trigger waiting.

Demo functionNoYes

Split-screenNoYes

Sampling rateSingle channel 1G/s, more than 2 channels only 250M/sSingle channel 1G/s, 2 channels 500M/s, multiple channels 250M/s

Start time2-3Sabout 16s

Power consumptionabout 6Wabout 7.5W

How to Connect the cables?

Different application scenarios require different connection methods (no matter which application scenario, the following connections are required):

First, power the oscilloscope box through the double-clip power cable: Connect one end of the double-clip power cable to the power interface of the oscilloscope box, and the other end to the vehicle battery to draw power (red is connected to the positive pole, black is connected to the negative pole).

Note: * PADVII series tablets suport USB power supply.

2. Connect the Type B terminal of the USB cable to the Type B interface of the oscilloscope, and connect the other end to the USB interface of the diagnostic device.

Package Includes:

1pc x Launch O2-2 main unit

4pcs x HT 30 test lines

1pc x HT25 secondary ignition pick-up line

1pc x battery clip cable

1pc x USB cable

2pcs x HT201 attenuator

20pcs x piercing needles

2 pairs x multimeter probes

2 pairs x crocodile clips

5pcs x colored 4 female probes

4pcs x clipper fuses(5*20mm)

2pcs x screw head

1pc x user manual

1pc x color label

1pc x packing list
