Tester Launch X-431 Sensorbox S2-2 pt senzori auto X431 PAD V PAD VII Pro3 APEX Pro5 Pro3s+ V5.0 etc

2500 Lei
Nou, Cu factură, Cu garanție
LAUNCH S2-2 Sensorbox is designed to test and simulate most vehicle sensors, quickly troubleshooting the ECU. It can be compatible with X431 PAD V PAD VII Pro3 APEX Pro5 Pro3s+ V5.0 etc, to maximize the repair shop’s revenue.
Launch X431 S2-2 Senzor simulator and tester

Features:
1. Check the ECU itself works or not
2. It supports manual write the waveform data
3. Simulate working condition of sensors without replacing parts
4. Simulate some special working condition of sensors without replacing parts
5. Be used as Multimeter to measures resistance, voltage AC/DC, capacitance, frequency and pulse signals, etc.
6. One click to enters the intuitive menu of senzor, actuator, defined/drawn the waveform, timing waveform, multimeter, system settings.

S2-2 Sensorbox is specially developed for diagnosing/simulating senzor faults. It mainly includes “Senzor”, “ Actuator”, “Defined/Drawn”, “Timing Waveform“ and “ multimeter”.
Senzor: Is used to simulate the input signals of the automobile electronic control system, and the automobile computer adjusts the running state of the engine according to these parameters.
Actuator: Is used to simulate the output control signal of automobile electronic control system, so as to judge the working conditions of automobile actuators such as idle motor, EGR solenoid valve, etc.
Multimeter: Through this function, users can test voltage, resistance, and capacitance.

Launch Senzor S2-2 2 box Features
Contains an integrated library of standard waveforms
One click to enters the intuitive menu of senzor, actuator, defined/drawn the waveform, timing waveform, multimeter, system settings.
Simulate working condition of sensors without replacing parts
          Throttle & Pedala Senzor
          Airflow Meters
          Oxygen Senzor
          Temperature Senzor
          EGR Senzor
          Injectors Senzor
          Crank
          Cam sensors inductive & hall

Compatible with DBScar VII Device
X431 device:  X431 pro 5, PRO3S+ V5.0, V+, X431 Pro3 APEX, PRO DYNO, PROS V5.0, X431 PRO TT, Pro3 ACE, X431 PRO ELITE, PRO3S+ SmartLink HD, PRO3 V+ Elite,
IMMO Series: IMMO Plus,  IMMO Elite,
PAD Series: PAD VII Elite, PAD V Elite,
Creader Series: CRP919X BT, CRP919E BT

DEFINED
Waveform: There are 9 waveforms to choose; Forward sine wave, reverse sine wave, forward square wave, reverse square wave, medium voltage, straight line, high / low voltage straight line, triangle wave, and trapezoidal wave.
Frequency: Set the frequency of the selected waveform.
Amplitude: Set the amplitude of the selected waveform.
Offset: Set the offset of the selected waveform.
Phase: Set the phase of the selected waveform.
Duty cycle: Set the duty cycle of the selected waveform.
Signal sync: Can cause CH1 and CH2 to output signals at the same time.

HAND-DRAWN
Total frame: 1-3 (optional). Indicate the total number of output points
Generally, one waveform is composed of 100 points. The values 1-3 indicate that you can select 100, 200, or 300 points to form a waveform.
Edit frame: You can edit a single frame or edit all
Waveform: You can select a preset waveform and place it in the hand-drawing area
Frequency: Frequency of a single frame (for 3-frame output, the total frequency is the set frequency/3)
Amplitude: Amplitude of the output waveform
Offset: Offset of the output waveform

How to Connect S2-2 Sensorbox
1) Insert one end (B-type terminal) of the USB cable into the B-type USB port of the senzor module host, and then insert the other end into the USB port of the diagnostic tool.

2) Press and hold the power buton for over 3s to start the senzor module. If the electric quantity is normal, the green lamp is steady on.Indicator lamp status description:
Green lamp:
Steady on: normal electric quantity
Flashing at an intermediate speed: low electric quantity (regardless of whether red lamp flashes)
Flashing at a low speed: charging in progress
Red lamp:
Steady on: diagnostic tool connected
Flashing: diagnostic tool disconnected. It will enter the charging status only when the red lamp is flashing. The green lamp is flashing at a low speed during charging.

3) Start the diagnostic tool and access the toolbox. Tap Senzor Simulator to access the job menu of senzor.
Job Menu
The senzor module is mainly divided into five functional modules
1) Senzor: Use output voltage or waveform to simulate the working status of the on-bord senzor, so as to accurately judge the quality of the senzor and reduce blind replacement of accessories.
2) Actuator: Used to output PWM signal to drive the on-bord coil actuator.
3) Defined/Drawn: Users can customize senzor waveforms to facilitate future senzor signal simulation.
4) Timing waveform: Customize timing waveform to match the engine (crankshaft + camshaft), and output in the same phase.
5) Multimeter: universal multimeter functions.

LAUNCH X431 S2-2 SensorBox Operation Guide:
Function 1: Test Actuator
Provide senzor voltage to operate & test actuator injector, VVT actuator, solenoid valve.
Operation:
Follow the connection images to connect S2-2 SensorBox and the vehicle correctly
Insert the USB Cable in the S2-2 SensorBox package into Launch X431 Tool (i.e. X431 PAD V)
It will show “USB device connected successfully” once the USB cable is inserted.
Then select Actuator>> VVT solenoid valve
Press the “+” or “- ” to adjust the value

Function 2: Simulate senzor waveform for ECU
Troubleshoot the car without replacing the senzor.
Easy to check ABS speed senzor, crank & cam senzor, Temp senzor.
Operation:
Follow the connection images to connect S2-2 SensorBox and the vehicle correctly
Read the data stream successfully

Function 3: Multimeter
Allow you to troubleshoot with 1 tool
Operation:
Connect S2-2 SensorBox and X431 tool, and connect the multimeter test pens to S2-2 SensorBox
Through this function, users can test voltage, resistance, and capacitance.

X-431 S2-2 TECHNICAL PARAMETERS
Senzor module:
ParameterRange
Number of channels2
Precision1 %
Amplitude range0 – 20 V
Max output current20 mA
Predefined frequency range0 – 20 kHz
Square wave signal pulse frequency0 – 15 kHz
Square wave signal duty cycle0 – 100 %
Power supplySimulator senzor output/max current 20mA (output is powered by battery) – Drive solenoid, ignition coil/output current 2A (external power supply)
USBUSB2.0 Type B (with charging and power supply function/5V)
DC voltage simulationSupport
Fixed frequency simulationSupport
Predefined waveform simulationSupport
Hand-drawn waveform simulationSupport
Signal generator interface2
External power supply port1
Solenoid interface1
Multimeter interface2
Working temperature0 °C – 50 °C
Storage temperature-30 °C – 70 °C
Multimeter:
ParameterRange
DC voltage0 V – 700 V
AC voltage0 V – 700 V
Resistance0 Ω – 40 MΩ
Capacitance0 F – 100 µF (maximum 30 s measurement time)
Diode0 V – 1,5 V
Continuity detectionSounds below 30 Ω

Package Includes:
1pc x Senzor module
2pcs x  HT30 test leads
1pc x 7-pin interface adapter cable
1pc x Battery clamps cable
1pc x USB cable
3pcs x 6-way breakout lead
2pcs x Multimeter test pen (black + red - )
5pcs x Colored 4mm female probes
20pcs x Needles
1pc x Power adaptor
2pcs x Screw heads
1pc x User manual
1pc x Packing list
1pc x Box

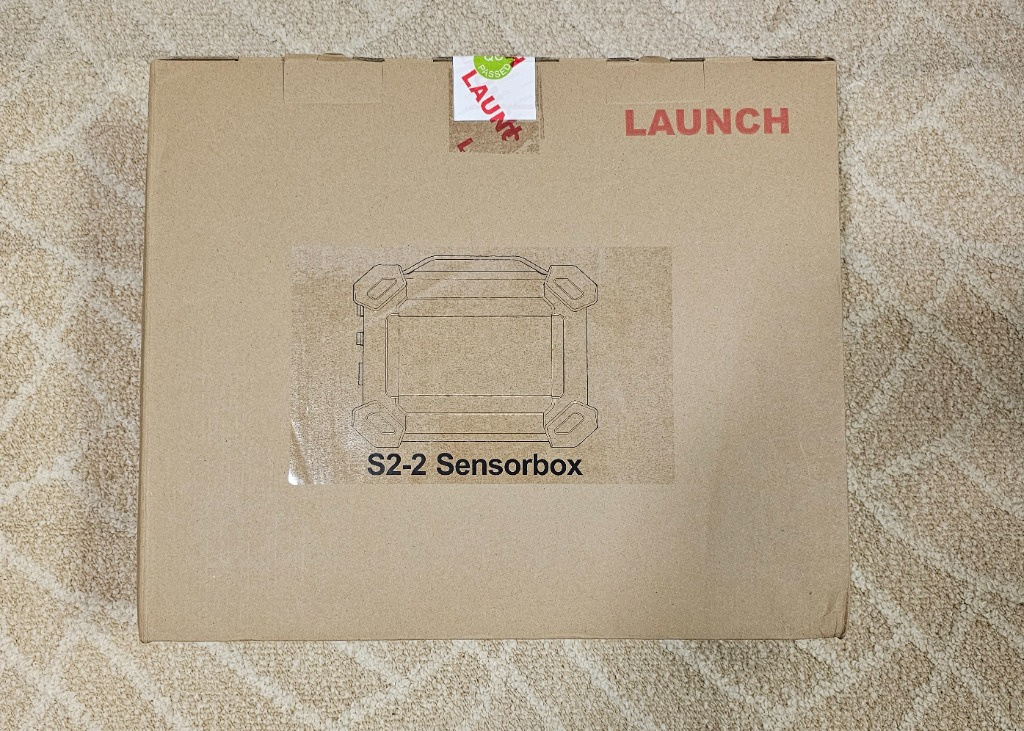

X-431 Sensorbox S2-2 package
