Modul Diagnoza Autel MaxiVCI VCI200 Bluetooth pt. MS906 PRO, ITS600

Product Description

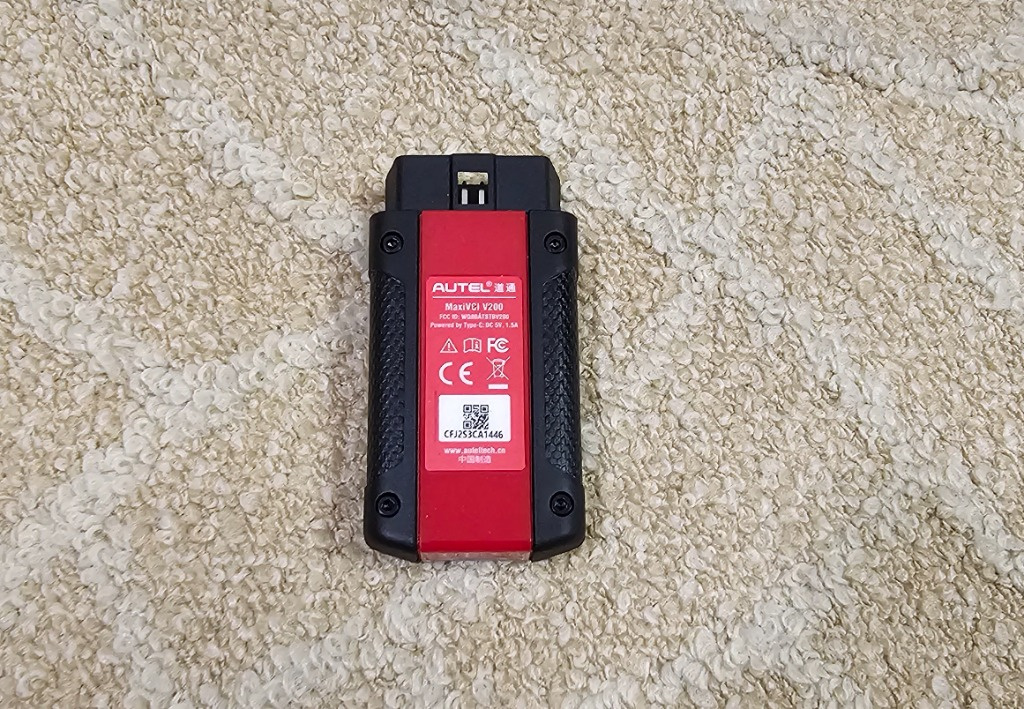

Autel MaxiVCI V200 is a VCI (Vehicle Communication Interface) device, which is used with MS906 PRO, ITS600 tablets to do vehicle diagnoses.

Autel MaxiVCI V200 Bluetooth Used With Diagnostic Tablets MS906 PRO, ITS600



Product Features:

Built-In Battery, Internet Update, User Friendly



Product Functions:

1. Connects to the vehicles OBDII port

2. Lightweight vehicle connection interface (VCI)

3. Enables the Autel tablets to connect to the vehicles

4. Allows technicians to perform testing outside of the vehicles

5. The tablets mentioned in this advertisement is not included! It is for reference only!

6. The MaxiVCI needs to be used with Autel tablets like MS906 PRO, ITS600, etc.



VCI LED Description:

LEDColorDescription

Power LEDYellowThe VCl is powered on and performing self-check,

GreenThe VCl is ready for use.

Flashing RedThe firmware is updating.

Vehicle/Connection LEDGreenSolid Green: The VCI is connected via USB cable.

Flashing Green: The VCl is communicating via USB cable.

BlueSolid Blue: The VCI is connected via Bluetooth.

Flashing Blue: The VCI is communicating via Bluetooth.

Product Specifications:

ConditionNew

BrandAutel

Supported SystemABS, DPF, EPB, SAS, SRS, TPMS

ConnectivityBluetooth

OBD InterfaceCAN, EOBD, OBD, OBDII

UPCDoes not apply

Package Includes:

1pc x Autel MaxiVCI V200
