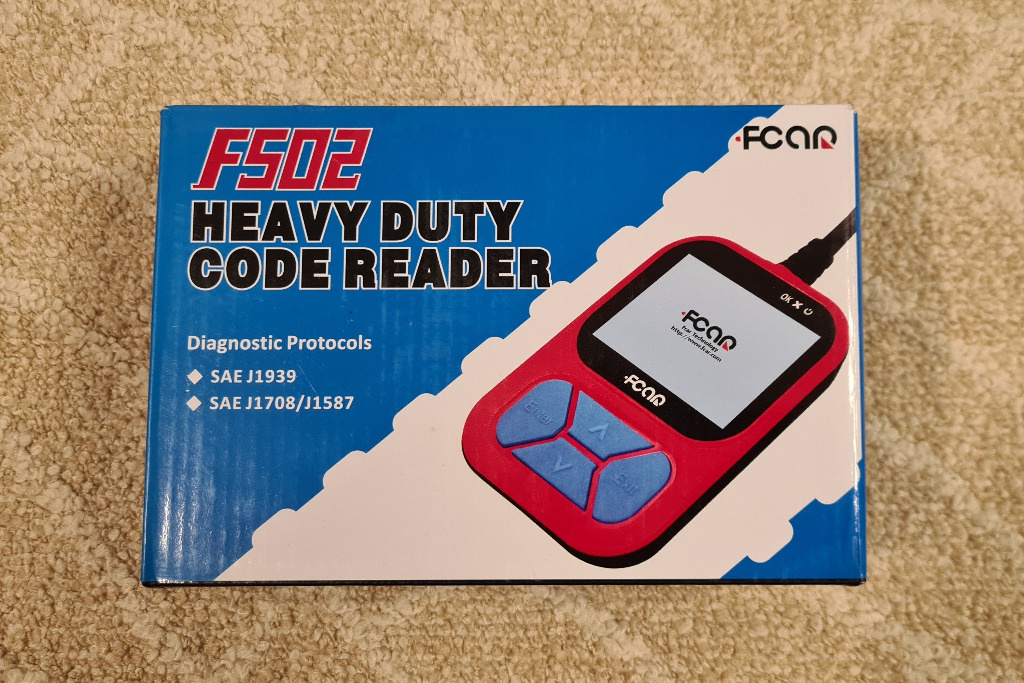

Diagnoza originala Fcar F502 pentru camioane, utilaje J1939, J1708 si J1587

Fcar F502 is a small Heavy Vehicle Code Reader which researched and developed by Fcar. It is with LCD true color display and can suport heavy duty truck standard protocols. With high quality and good performance,this code reader can enable vehicle technicians to diagnose heavy duty trucks more easily and quickly.The  micro tool is widely used in various maintenance companies, auto manufacturers, repair stations, petrol engine manufacturers and energy-based enterprises etc.

1.Exclusive Sale Heavy Duty code reader for the vehicles with standard protocol of heavy-duty trucks  (J1939 and J1708)
2.Operation Methods:Diagnose the vehicles  by OBD16 via  diesel 6PIN and  diesel 9PIN Diagnostic Protocol.

3.Supported Language: English

4.Update Online on Official Website

5.Read DTC

6.Suport ECU of vehicles like CUMMINS,Bosch,DELPHI

Fcar F502 code reader Functions
◆Engine #1
◆Turbocharger
◆Transmission
◆Axle, Power Unit
◆Axle, Trailer
◆Brakes, Power Unit
◆Brakes, Trailer #1
◆Instrument Cluster
◆Trip Recorder

Step 1:Long-press "Enter" of Main Unit while insert it with USB cable.See Image 1

Step 2:Long-press "Enter" of Main Unitwhile insert it with USB cable. See Image 2.

Step 3:Long-press "Enter" of Main Unit while insert it with USB cable. See Image 3.

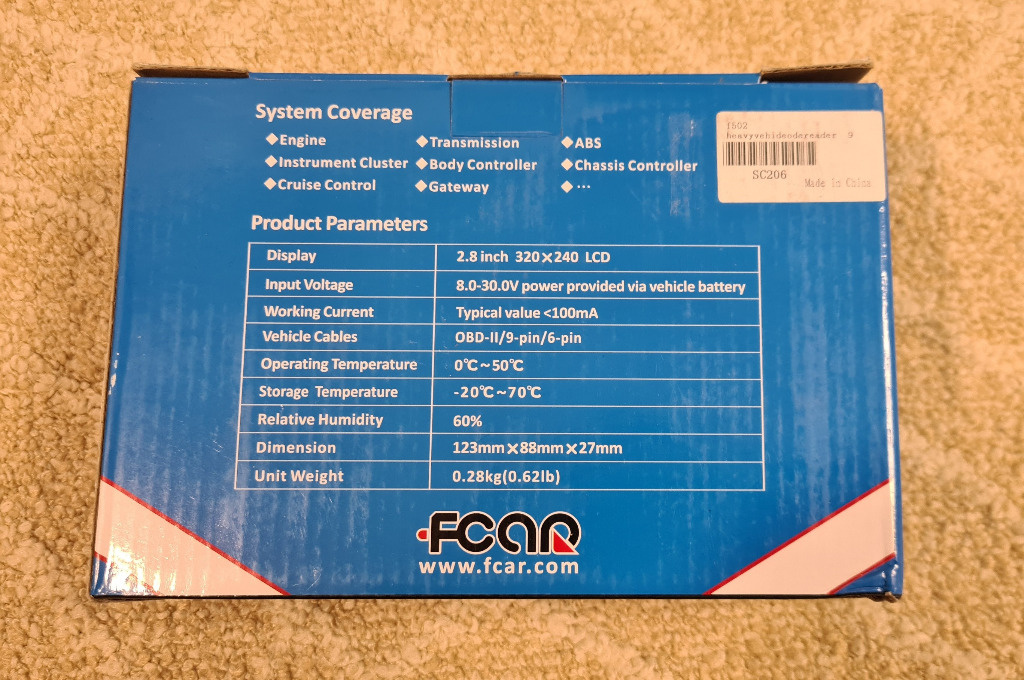

Fcar F502 Parameters:
Screen size :2.8 inch  320×240  LCD
Work voltage:8V ~ 32V
Work current :Typical value <100mA
Connection method :Standard 16-PIN OBD diagnostic connector
Working temperature :0℃~ 50℃
Storage environment temperature: -20℃~70℃
Relative humidity: 60%
Product size(mm):123×88×27
Weight of the main unit: 280g

Fcar F502 Firmware Display:



1.OK diagnosis normal indicator light: The indicator light is on in communication diagnosis.

2.OK diagnosis failure indicator light: The indicator light is on when there is a failure of communication diagnosis;

3.Voltage indicator light: The indicator light is on when the machine is connected to OBDⅡ diagnostic sockets.

4.Diagnosis communication line, which should be connected to OBDⅡ diagnostic sockets on the vehicle;

5.Up and down buttons

6.Enter: The buton for confirmation;

7.USB data line interface: Backup interface for data connecting;

8.Exit: The buton for cancellation and back.
