Programator Motorola 912 9S12 - in circuit / on board

640 Lei

Nou, Cu factură, Cu garanție

For MOTOROLA Programmer, 9(S)12 Programmer

Function:

1. in circuit / on board EEPROM/FLASH programming
2. Win 32 control software including editor
3. Communication with PC via a serial port
4. Easy to use Windows XP software
5. 80QFP, 112QFP and 144QFP programming adapters
6. High - Speed Programming

Compatible Chips List:

68HC912DC128A (3K91D)
MC68HC912DC128 (0K50E)
MC68HC912DG128 (5H55W)
MC68HC912DG128A (3K91D)
MC68HC912DG128A (0K50E)
MC68HC912D60A(2K38K)
MC68HC912B32 (4J54E)
MC68HC912B32 (9H91F)
MC68HC912D60 (0K75F)
MC68HC912D60 (0K13J)
MC68HC912D60 (4F73K)
MC9S12D64 (2L86D)
MC9S12DG128B (OL85D)
MC9S12DT128B (OL85D)
MC9S12A128B (OL85D)
MC9S12DB128B (OL85D)
MC9S12DT128B (1L85D)
MC9S12H128 (1K78X)
MC9S12 DT128B (3L40K)
MC9S12DG256C (2K79X)
MC9S12DT256C (2K79X)
MC9S12DP256C (2K79X)
MC9S12H256 (1K78X)
MC9S12DP512 (1L00M)

Additional items you'll need to use this tool

1. Host: A 32 Bit x86 based or Pentium PC with a free LPT communication port.
2. Power supply: An 12 Volt / 500 mA power adapter.

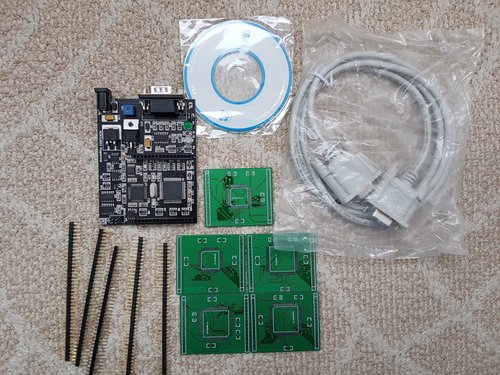

Package list:

1pc x 9S12 programmer
1pc x HC912 QFP80 adapter
1pc x MC9S12 112QFP adapter
1pc x MC9S12 80QFP adaper
1pc x HC912 QFP112 adapter
1pc x MC9S12H256 144QFP adapter
